UPS1J222MHD

2.2mF ±20% 63V 2120mA100kHz2120mA Φ18mm

PS Series 2200 uF 63V 105°C Ř18 x 40mm LS=7.5mm Radial Aluminum Electrolytic Cap

立创商城:
2200uF ±20% 63V

得捷:
CAP ALUM 2200UF 20% 63V RADIAL

艾睿:

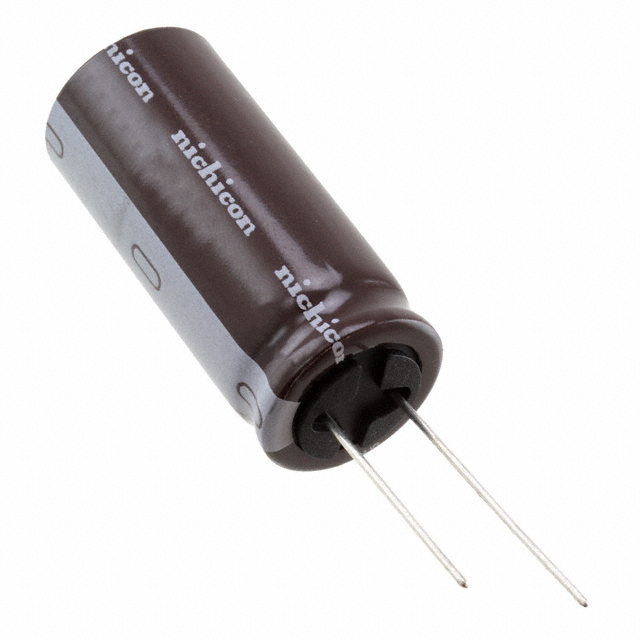

Using this electrolytic UPS1J222MHD aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 2200uF. Its leakage current is 4@1Min μA. This product is 40 mm tall with a diameter of 18 mm. The UPS1J222MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.

安富利:
Cap Aluminum 2200uF 63V 20% 18 X 40mm Radial 7.5mm 2120mA 3000h 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 2200uF; 63VDC; ±20%
