1uF ±20% 50V Φ4mm 5.4mm
Thanks to , you"ll never miss low-end frequencies with their electrolytic aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. Its leakage current is 3@2Min μA. This product is 5.8 mm tall with a diameter of 4 mm. Its capacitance value is 1uF.
额定电压DC 50 V
电容 1 µF
容差 ±20 %
产品系列 UWP
纹波电流 8.4 mA
工作温度Max 85 ℃
工作温度Min 40 ℃
额定电压 50 V
安装方式 Surface Mount
封装 SMD

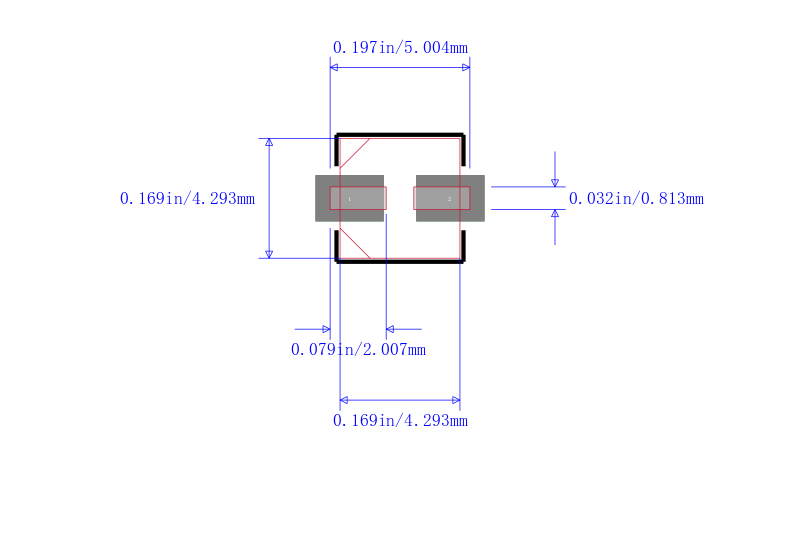

长度 5.4 mm
高度 5.4 mm
直径 4.00 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命（小时） 1000 h
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UWP1H010MCL1GB Nichicon 尼吉康 | 当前型号 | 当前型号 |
NACEN1R0M50V4X5.5TR13F NIC | 功能相似 | UWP1H010MCL1GB和NACEN1R0M50V4X5.5TR13F的区别 |
EMVL500ADA1R0MD60G 贵弥功 | 功能相似 | UWP1H010MCL1GB和EMVL500ADA1R0MD60G的区别 |
