68uF ±20% 25V 150mA100kHz150mA Φ8mm

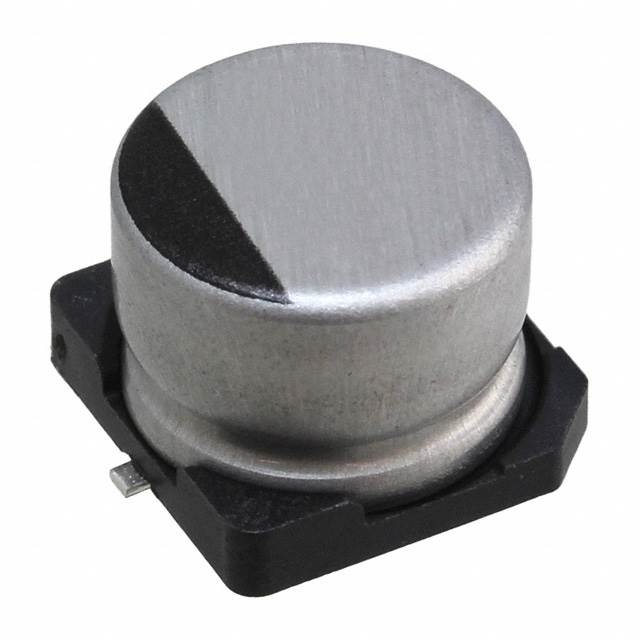

This electrolytic aluminum capacitor from has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 6.2 mm tall with a diameter of 8 mm. It has a tolerance of 20%. Its leakage current is 17@2Min μA. Its capacitance value is 68uF.
额定电压DC 25.0 V
电容 68 µF
等效串联电阻ESR 0.8 Ω
容差 ±20 %
产品系列 UWF
纹波电流 150 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount

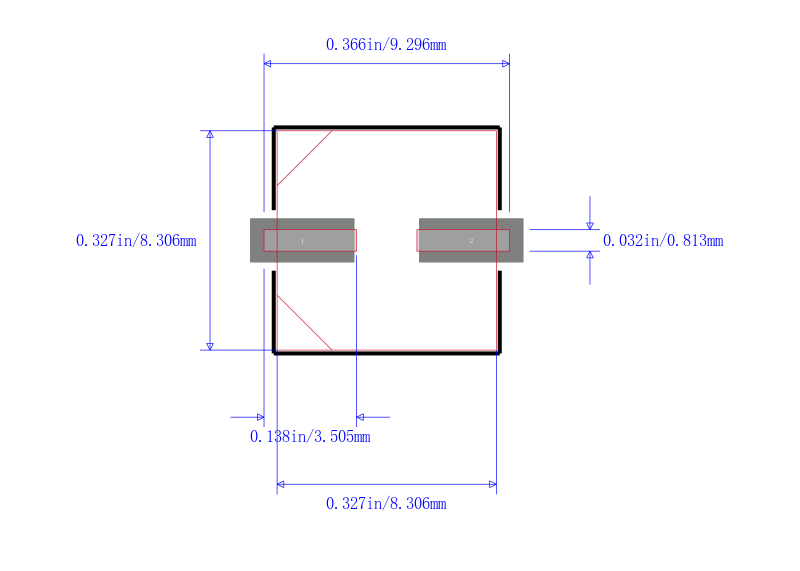

封装 SMD
高度 6.2 mm
直径 8.00 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命（小时） 1000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UWF1E680MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
UWF1C680MCL1GS 尼吉康 | 功能相似 | UWF1E680MCL1GS和UWF1C680MCL1GS的区别 |
