UL Series### 表面安装 105°C 系列
UL 系列
立创商城:
22uF ±20% 16V
得捷:
CAP ALUM 22UF 20% 16V SMD
欧时:

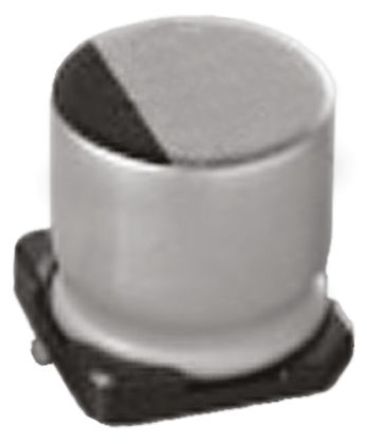

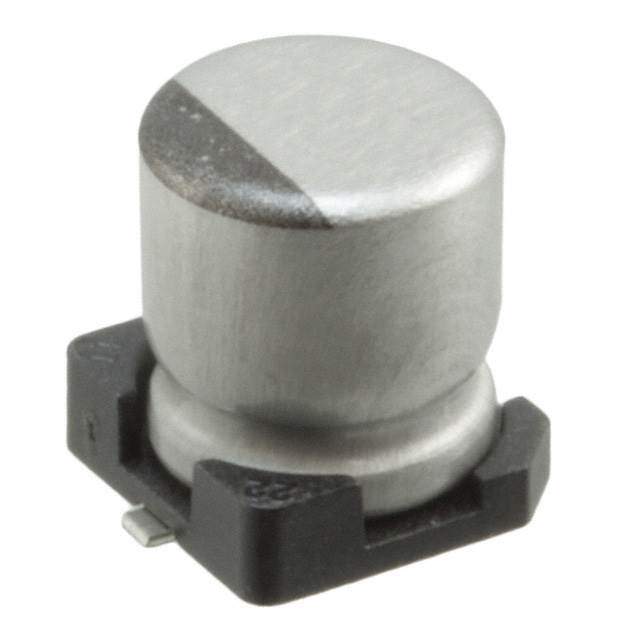

Nichicon 铝电解电容器 UL 系列 16V dc 22μF 表面安装器件 UUL1C220MCL1GS, ±20%容差, 最高+105°C
艾睿:
Using this electrolytic UUL1C220MCL1GS aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 3@2Min μA. It has a tolerance of 20%. This product is 5.8 mm tall with a diameter of 5 mm. Its capacitance value is 22uF.
Allied Electronics:
22uF 16 V Aluminium Electrolytic Capacitor, UL Series 5000h 5 Dia. x 5.8mm
安富利:
Cap Aluminum 22uF 16V 20% 5 X 5.8mm SMD 30mA 5000 hr 105°C T/R
Chip1Stop:
Cap Aluminum Lytic 22uF 16V 20% 5 X 5.8mm SMD 30mA 5000h 105℃ T/R
Verical:
Cap Aluminum Lytic 22uF 16V 20% 5 X 5.8mm SMD 30mA 5000h 105C Automotive T/R
Newark:
# NICHICON UUL1C220MCL1GS SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 22 µF, 25 V, UL Series
额定电压DC 25.0 V
电容 22 µF
容差 ±20 %
产品系列 UUL
纹波电流 30 mA
纹波电流高频 30mA @120Hz
纹波电流低频 45mA @10kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 25 V
安装方式 Surface Mount
封装 SMD
长度 5.3 mm
宽度 5.3 mm
高度 5.8 mm
直径 5.00 mm
封装 SMD
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命(小时) 5000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UUL1C220MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
EEEHD1C220AR 松下 | 功能相似 | UUL1C220MCL1GS和EEEHD1C220AR的区别 |
EEEHC1C220R 松下 | 功能相似 | UUL1C220MCL1GS和EEEHC1C220R的区别 |
