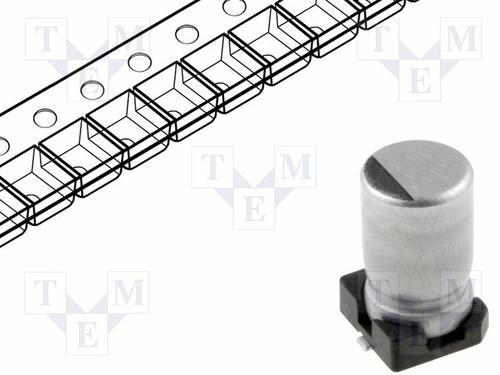

220uF ±20% 35V Φ10mm 10mm
220µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
得捷:
CAP ALUM 220UF 20% 35V SMD
立创商城:
220uF ±20% 35V
艾睿:
By using pure aluminum foil in the anode, this electrolytic UCB1V221MNL1GS aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 220uF. This product is 10 mm tall with a diameter of 10 mm. Its leakage current is 4@2Min μA.
TME:
Capacitor: electrolytic; SMD; 220uF; 35VDC; Ø10x10mm; ±20%; 7000h
Verical:
Cap Aluminum Lytic 220uF 35V 20% 10 X 10mm SMD 216mA 7000h 105C Automotive T/R
额定电压DC 35.0 V
工作电压 35 VDC
电容 220 µF
容差 ±20 %
产品系列 UCB
纹波电流 216 mA
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 35 V
安装方式 Surface Mount
封装 SMD
高度 10 mm
直径 10.0 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 500
寿命(小时) 7000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCB1V221MNL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
EEE-1VA221UP 松下 | 功能相似 | UCB1V221MNL1GS和EEE-1VA221UP的区别 |
EEEFK1V221P 松下 | 功能相似 | UCB1V221MNL1GS和EEEFK1V221P的区别 |
EEEHD1V221AP 松下 | 功能相似 | UCB1V221MNL1GS和EEEHD1V221AP的区别 |
