10mF ±20% 16V 4280mA100kHz4280mA Φ18mm

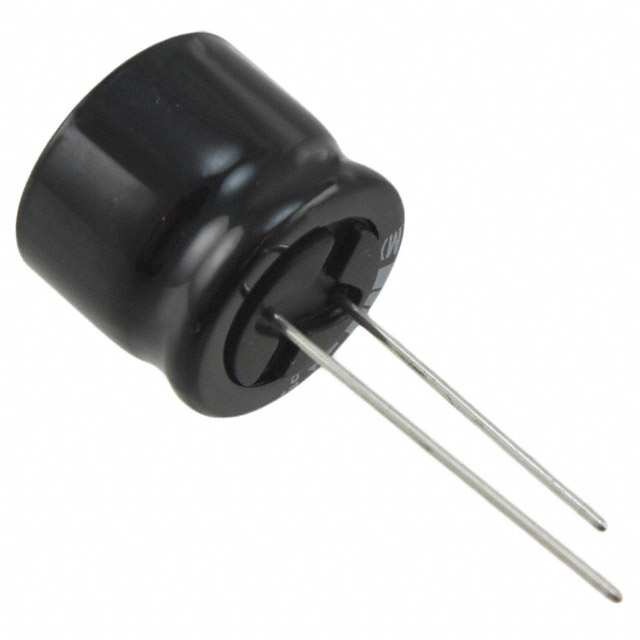

Since the anode is made out of pure aluminum, you"ll be able to filter lower frequencies with ease using "s electrolytic aluminum capacitor. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 1600@2Min μA. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The UHE1C103MHD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 10000uF. This product is 40 mm tall with a diameter of 18 mm.
额定电压DC 16.0 V
电容 10000 µF
等效串联电阻ESR 32.0 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 3.424A @120Hz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2

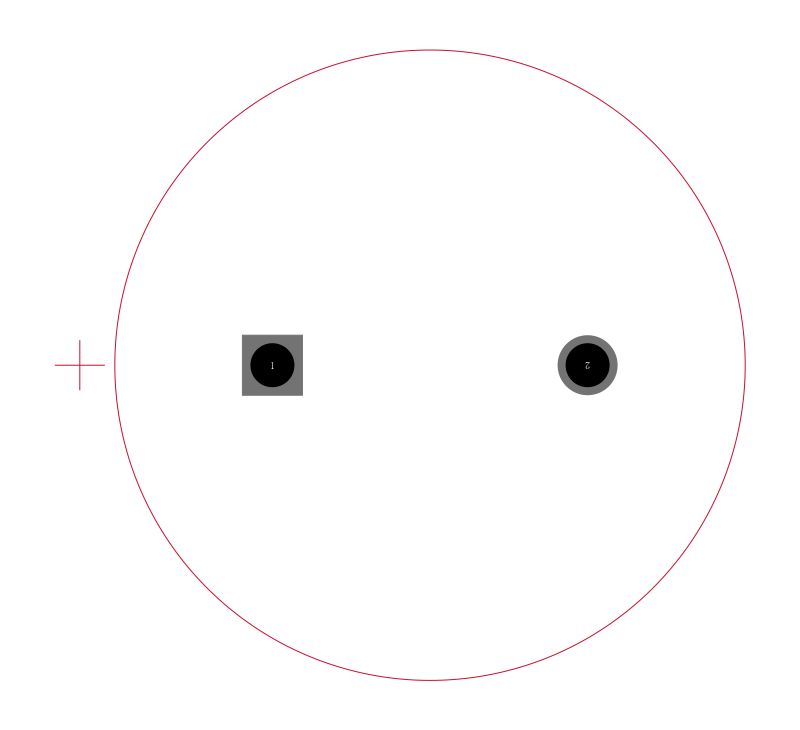

封装 Radial, CAN
引脚间距 7.5 mm
长度 40.0 mm
高度 40 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 200
寿命（小时） 10000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1C103MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE1C103MHT 尼吉康 | 类似代替 | UHE1C103MHD和UHE1C103MHT的区别 |
EKY-160ELL103MM40S 贵弥功 | 功能相似 | UHE1C103MHD和EKY-160ELL103MM40S的区别 |
16YXG10000MEFCGC18X40 Rubycon | 功能相似 | UHE1C103MHD和16YXG10000MEFCGC18X40的区别 |
