UPS1E682MHD

6.8mF ±20% 25V 3300mA100kHz3300mA Φ18mm

铝电解器 径向，Can - 105°C 时为 3000 小时

立创商城:
6800uF ±20% 25V

得捷:
CAP ALUM 6800UF 20% 25V RADIAL

艾睿:

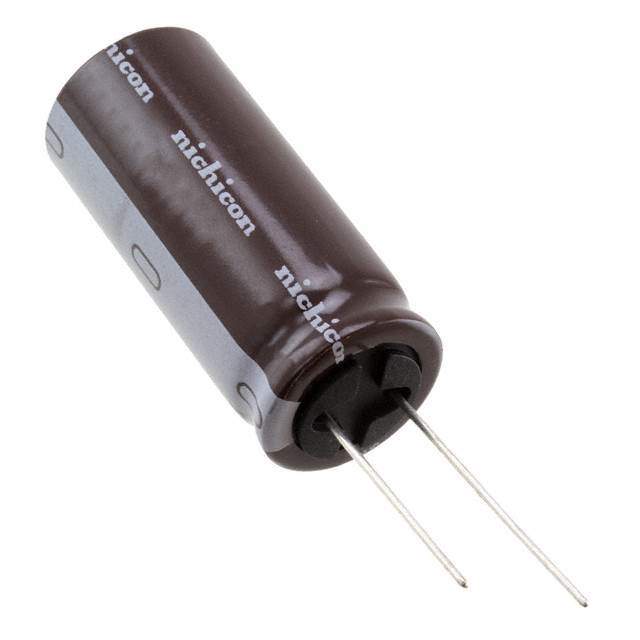

Use this relatively high equivalent series resistance electrolytic UPS1E682MHD aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 6800uF. Its leakage current is 4@1Min μA. This product is 40 mm tall with a diameter of 18 mm. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. The UPS1E682MHD aluminum electrolytic capacitor has a radial termination style.

安富利:
Cap Aluminum 6800uF 25V 20% 18 X 40mm Radial 7.5mm 3300mA 3000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 6800uF; 25VDC; ±20%

Verical:
Cap Aluminum Lytic 6800uF 25V 20% 18 X 40mm Radial 7.5mm 3300mA 3000h 105C Bulk
