UCS2D271MNY9

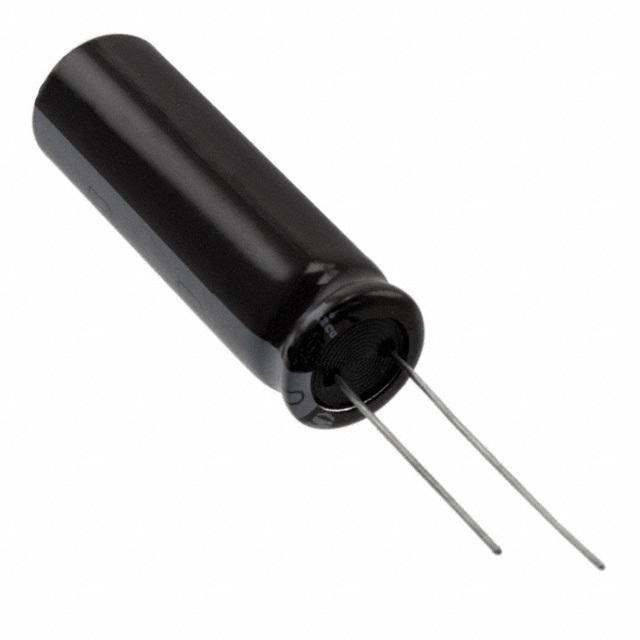

NICHICON  UCS2D271MNY9  铝电解电容, 270uF, 200V, 径向引线

**Features:

**

* High Ripple Current

* Load Life of 8000 to 10000 Hours at 105°C

* Suited for Ballast Applications

* Compliant to the RoHS Directive 2002/95/IEC

得捷:
CAP ALUM 270UF 20% 200V RADIAL

立创商城:
270uF ±20% 200V

e络盟:
铝电解电容, 270uF, 200V, 径向引线

艾睿:

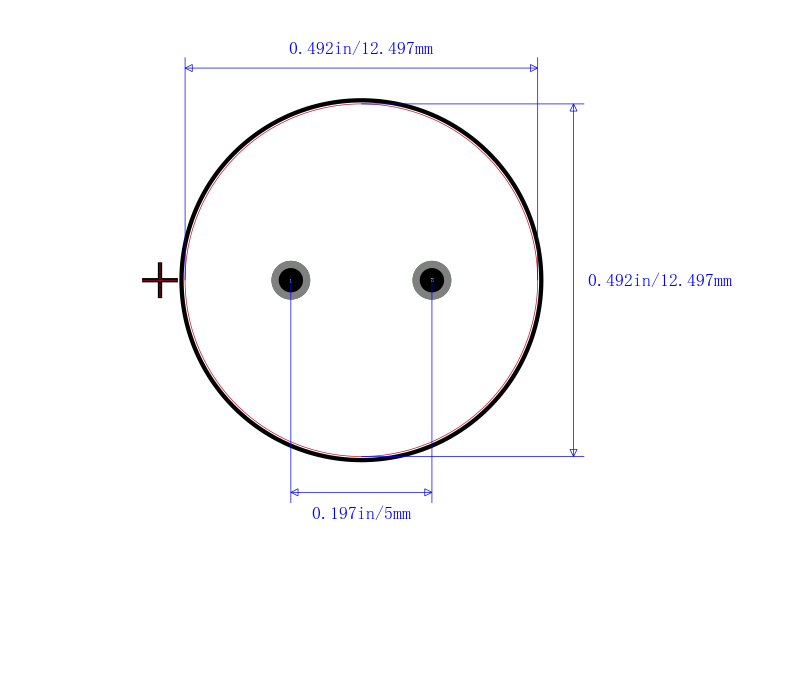

Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic UCS2D271MNY9 aluminum capacitor from Nichicon for its relatively high ESR! It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The UCS2D271MNY9 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 2260@1Min μA. This product is 50 mm tall with a diameter of 12.5 mm. It has a tolerance of 20%. Its capacitance value is 270uF.

Allied Electronics:
Capacitor; Alum Electrolytic; Cap 270 uF; Tol 20%; Vol-Rtg 200 VDC; Radial; 12.5x50mm

Chip1Stop:
Cap Aluminum Lytic 270uF 200V 20% 12.5 X 50mm Radial 5mm 1265mA 10000h 105ÂÂ℃ Bulk

TME:
Capacitor: electrolytic; THT; 270uF; 200VDC; Ø12.5x50mm; Pitch:5mm

Verical:
Cap Aluminum Lytic 270uF 200V 20% 12.5 X 50mm Radial 5mm 1265mA 10000h 105C Bulk

Newark:
# NICHICON  UCS2D271MNY9  Electrolytic Capacitor, SP-Cap, 270 µF, 200 V, CS Series, ± 20%, Radial Leaded, 12.5 mm
