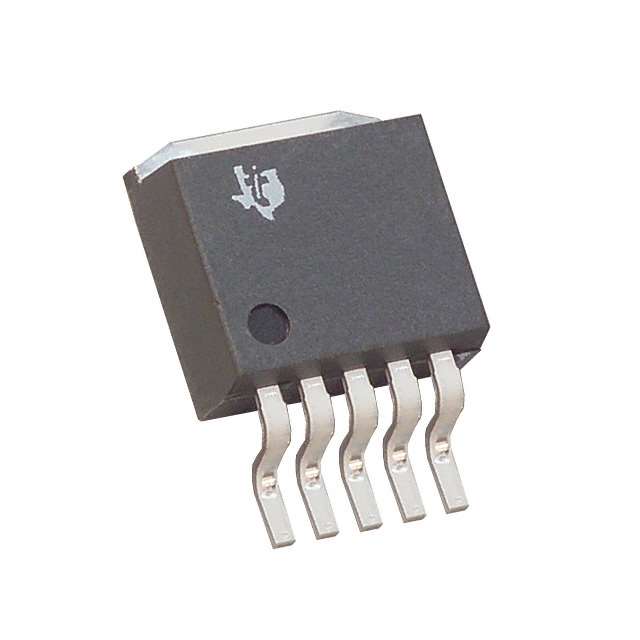

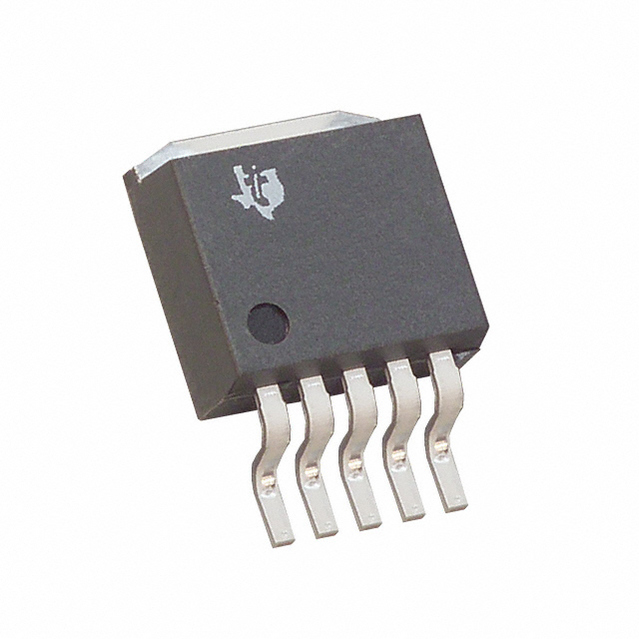

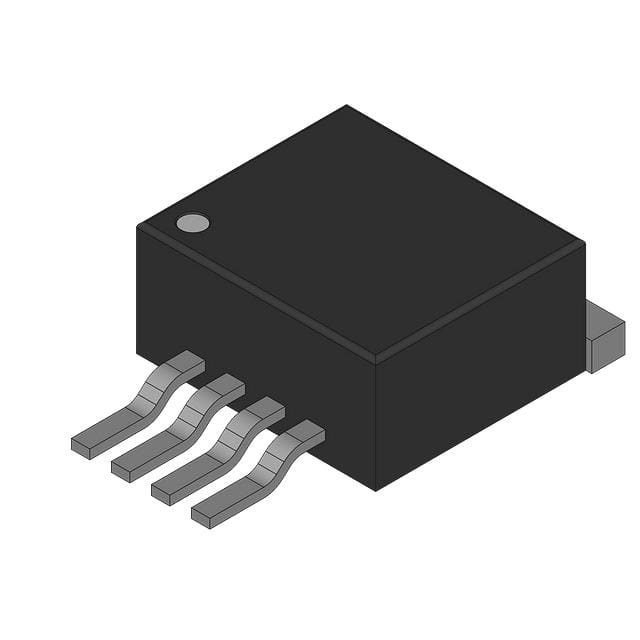

TEXAS INSTRUMENTS UCC383TDKTTT-ADJ 电压稳压器, LDO, 可调, 2.8V至9V输入, 400mV压差, 1.2V至8.5V/3A输出, TO-263-5
description
The UCC283−3/−5/−ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC283−5 passes 3 A while requiring only 0.45 V of typical input voltage headroom ensured 0.6-V dropout.
• Precision Positive Linear Series Pass Voltage Regulation
• 0.45 V Dropout at 3 A
• 50 mV Dropout at 10 mA
• Quiescent Current Under 650 µA Irrespective of Load
• Adjustable 5-Lead Output Voltage Version
• Fixed 3-Lead Versions for 3.3-V and 5-V Outputs
• Logic Shutdown Capability
• Short-Circuit Power Limit of 3% × VIN × ISHORT
• Low VOUT to VIN Reverse Leakage
• Thermal Shutdown
输出接口数 1
输入电压DC 9.00V max
输出电压 1.22V ~ 8.5V
输出电流 3 A
供电电流 650 µA
针脚数 5
静态电流 0.4 mA
输出电容类型 Tantalum
跌落电压 400 mV
调节输出数 1
输入电压Max 9 V
输入电压Min 2.8 V
输出电压Max 8.5 V
输出电压Min 1.2 V
输出电流Max 3 A
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 ±2.5 %
电源电压Max 9 V
电源电压Min 2.8 V
输入电压 2.8V ~ 9V
安装方式 Surface Mount
引脚数 5

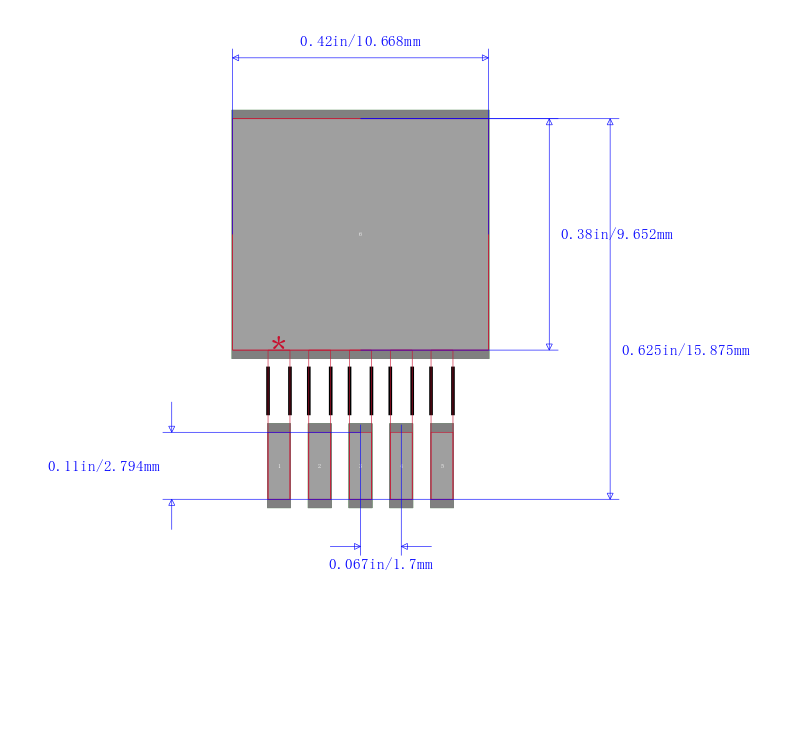

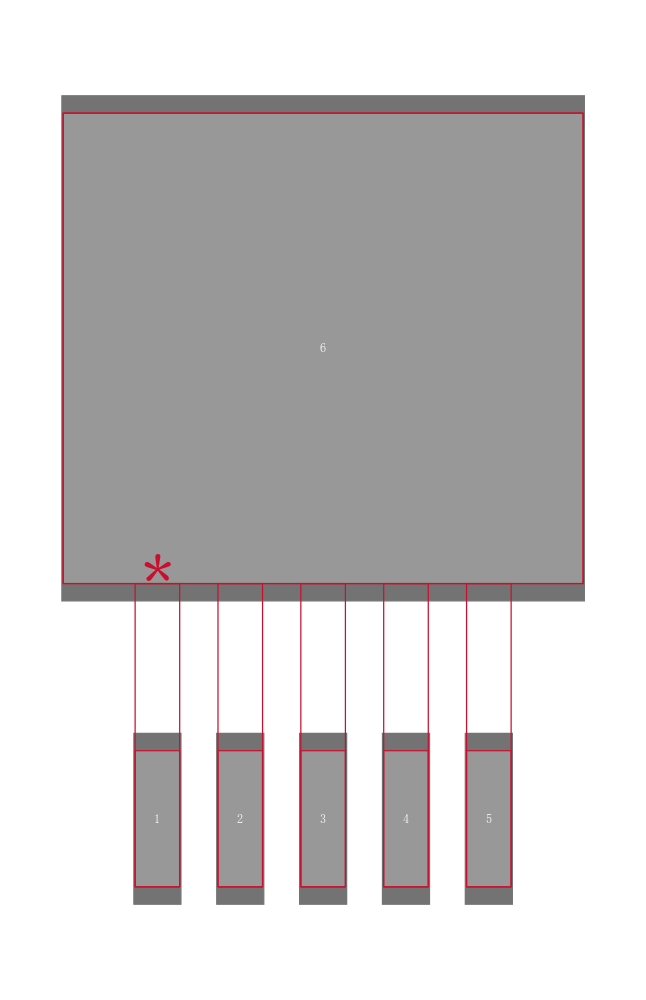

封装 TO-263-5
宽度 8.42 mm
高度 4.83 mm
封装 TO-263-5
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC383TDKTTT-ADJ TI 德州仪器 | 当前型号 | 当前型号 |
UCC283TDKTTT-ADJ 德州仪器 | 类似代替 | UCC383TDKTTT-ADJ和UCC283TDKTTT-ADJ的区别 |
UCC383TDKTTT-ADJG3 德州仪器 | 类似代替 | UCC383TDKTTT-ADJ和UCC383TDKTTT-ADJG3的区别 |
UCC383TD-ADJ 德州仪器 | 类似代替 | UCC383TDKTTT-ADJ和UCC383TD-ADJ的区别 |
