UC382TDTR-ADJ

快速LDO线性稳压器 FAST LDO LINEAR REGULATOR

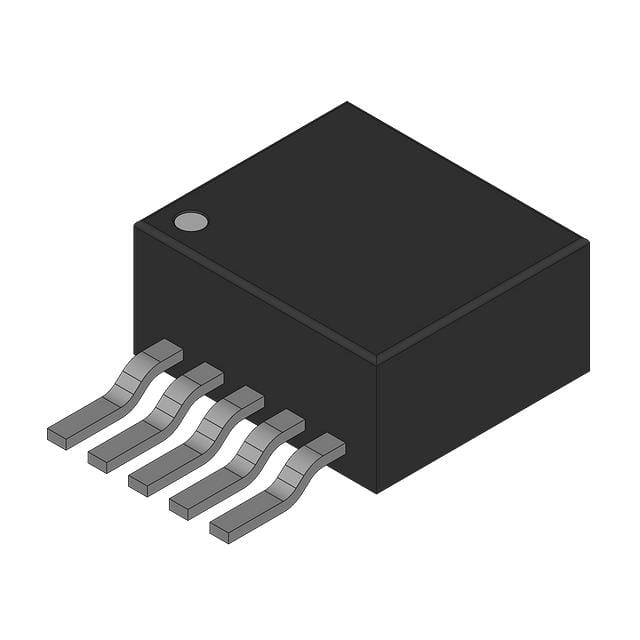

Linear Voltage Regulator IC 1 Output 3A DDPAK/TO-263-5

得捷:
IC REG LIN POS ADJ 3A DDPAK

立创商城:
UC382TDTR-ADJ

德州仪器TI:
3-A, ultra-low-dropout voltage regulator with reverse current protection from 0°C to 100°C

艾睿:
This LDO UC382TDTR-ADJ linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.35@3A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.7 V that does not exceed 7.5 V. With an adjustable|fixed output that has a voltage of 1.2 to 6|1.2 V, this is power management at its best. At a load regulation of 4mV a constant current can be produced at the output of your circuit. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 0.425@3A V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 100 °C.

安富利:
LDO Regulator Pos 1.2V to 6V1.2V 3A 6-Pin5+Tab TO-263 T/R

Verical:
LDO Regulator Pos 1.2V to 6V1.2V 3A 6-Pin5+Tab DDPAK T/R

Win Source:
Linear Voltage Regulator IC Positive Fixed or Adjustable 1 Output 1.2V, 1.2 V ~ 6 V 3A DDPAK/TO-263-5
