LDO(低压降)线性电压调节器,3A,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,3A,Texas Instruments
得捷:
IC REG LIN 5V 3A DDPAK/TO263-3
立创商城:
UCC383TDKTTT-5
德州仪器TI:
3-A, 9-V, ultra-low-dropout voltage regulator with reverse current protection from 0°C to 70°C
欧时:

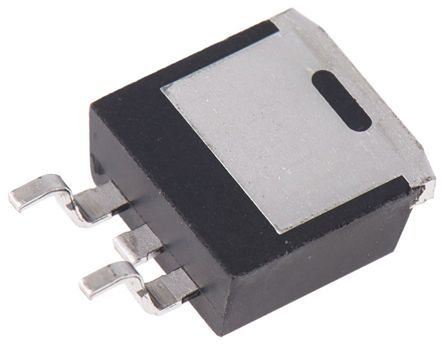

Texas Instruments UCC383TDKTTT-5 LDO 稳压器, 5 V输出, 3A最大输出, ±2.5%精确度, 3引脚 D2PAK TO-263封装
贸泽:
LDO Voltage Regulators Low Power 3 Ampere
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO UCC383TDKTTT-5 linear regulator from Texas Instruments. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.4@3A|0.2@1500mA|0.05@10mA V. This voltage regulation device&s;s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 5.45 V and no higher than 9 V. With a fixed output that has a voltage of 5 V, this is power management at its best. By operating at a load regulation of 20mV and line regulation of 10mV you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of 0 °C to 70 °C. Its polarity is positive. The maximum dropout voltage is 0.6@3A|0.45@1500mA|0.15@10mA V.
安富利:
LDO Regulator Pos 5V 3A 4-Pin3+Tab TO-263 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 3.0A, Fixed5.0V, Reverse Current Protection, Thermal Shutdown LDO Regulator Pos 5V 3A 4-Pin3+Tab TO-263 T/R
Verical:
LDO Regulator Pos 5V 3A 4-Pin3+Tab TO-263 T/R
输出接口数 1
输入电压DC 9.00V max
输出电压 5 V
输出电流 3 A
供电电流 650 µA
静态电流 400 µA
输出电容类型 Tantalum
跌落电压 400 mV
调节输出数 1
输入电压Max 9 V
输入电压Min 5.45 V
输出电压Min 5 V
输出电流Max 3 A
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 2.5 %
输入电压 ≤9 V
安装方式 Surface Mount
引脚数 3
封装 TO-263-4
长度 10.18 mm
宽度 8.41 mm
高度 4.44 mm
封装 TO-263-4
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC383TDKTTT-5 TI 德州仪器 | 当前型号 | 当前型号 |
UCC283TDKTTT-5 德州仪器 | 完全替代 | UCC383TDKTTT-5和UCC283TDKTTT-5的区别 |
UCC383TDKTTT-5G3 德州仪器 | 完全替代 | UCC383TDKTTT-5和UCC383TDKTTT-5G3的区别 |
LM2940CSX-5.0/NOPB 德州仪器 | 类似代替 | UCC383TDKTTT-5和LM2940CSX-5.0/NOPB的区别 |
