快速LDO线性稳压器 FAST LDO LINEAR REGULATOR

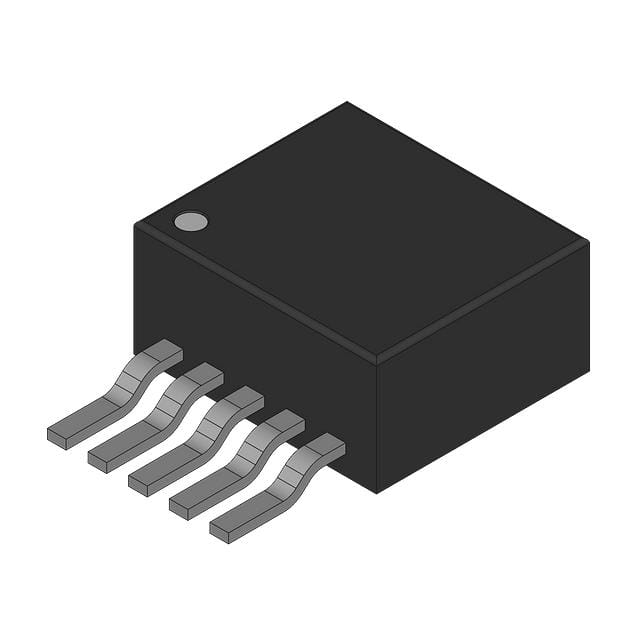

PMIC - 稳压器 - 线性 正 固定 输出 3A DDPAK/TO-263-5
得捷:
IC REG LIN 2.1V 3A DDPAK/TO263-5
立创商城:
UC382TDKTTT-2
德州仪器TI:
3-A, ultra-low-dropout voltage regulator with reverse current protection from 0°C to 100°C
艾睿:
Use the LDO UC382TDKTTT-2 linear regulator from Texas Instruments to maintain a constant output voltage. Its typical dropout voltage at current is 0.35@3A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.45 V and no higher than 7.5 V. With a fixed output that has a voltage of 2.1 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 4mV. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 100 °C. The maximum dropout voltage is 0.425@3A V.
安富利:
LDO Regulator Pos 2.1V 3A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 3.0A, Fixed2.1V, Fast Transient Response, Low Quiescent Current LDO Regulator Pos 2.1V 3A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 2.1V 3A 6-Pin5+Tab TO-263 T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.1V 3A DDPAK/TO-263-5
输出接口数 1
输入电压DC 7.50V max
输出电压 2.1 V
输出电流 3 A
静态电流 0.006 mA
输出电容类型 Ceramic
跌落电压 0.35V @3A
调节输出数 1
输入电压Max 7.5 V
输入电压Min 2.45 V
输出电压Min 2.1 V
输出电流Max 3 A
工作温度Max 100 ℃
工作温度Min 0 ℃
精度 ±1 %
输入电压 ≤7.5 V
安装方式 Surface Mount
引脚数 6
封装 TO-263-6
宽度 8.42 mm
封装 TO-263-6
工作温度 0℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC382TDKTTT-2 TI 德州仪器 | 当前型号 | 当前型号 |
UC382TDTR-2 德州仪器 | 完全替代 | UC382TDKTTT-2和UC382TDTR-2的区别 |
