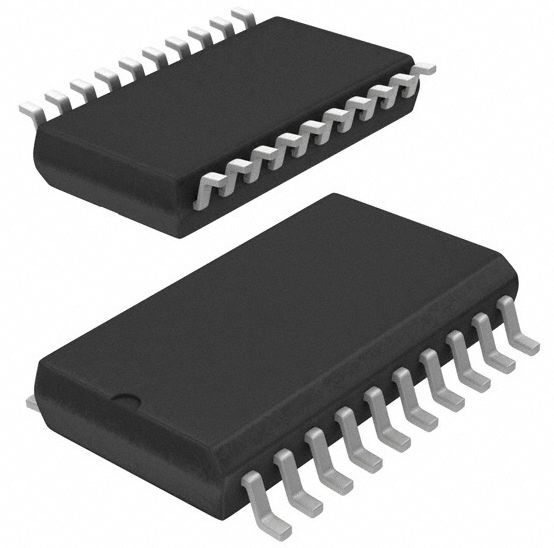

TEXAS INSTRUMENTS UCC3895DWTR 控制器, PWM, 16.5V-10V电源, 1 MHz, 250mV, SOIC-20
The is a phase-shift Pulse Width Modulation PWM Controller implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. The device allows constant frequency pulse-width modulation in conjunction with resonant zero-voltage switching to provide high efficiency at high frequencies. The part is used either as a voltage-mode or current-mode controller. While the UCC3895 maintains the functionality of the UC3875/6/7/8 family and UC3879, it improves on that controller family with additional features such as enhanced control logic, adaptive delay set and shutdown capability. Because the device is built using the BCDMOS process, it operates with dramatically less supply current than it"s bipolar counterparts. It operates with a maximum clock frequency of 1MHz.
频率 1 MHz
电源电压DC 10.0V min
输出接口数 4
输出电压 250 mV
输出电流 100 mA
针脚数 20
耗散功率 650 mW
调节输出数 4
上升时间 20 ns
开关频率 1000 kHz
拓扑结构 Buck
占空比 100 %
最大占空比 100 %
下降时间 20 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 650 mW
电源电压 10V ~ 16.5V
电源电压Max 16.5 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 12.8 mm
高度 2.35 mm
封装 SOIC-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
香港进出口证 NLR
