电源序列发生器和监控器 32-VQFN -40 to 85
This voltage monitor voltage monitor IC from Texas Instruments will make sure components in your circuit won"t get hit by unwanted voltage spikes. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage supervisor IC has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 3 V and a maximum of 3.6 V.
电源电压DC 3.30 V
供电电流 0.35 mA
静态电流 4.50 mA
阈值电压 Adjustable
复位电压Max 1.9 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 32

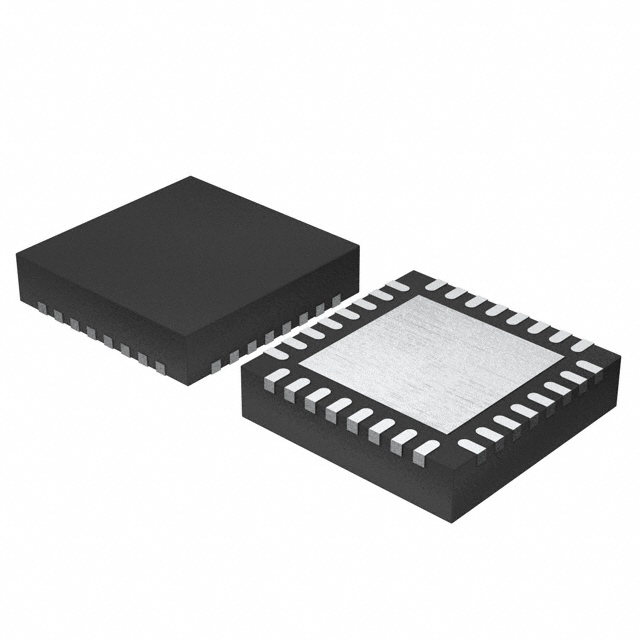

封装 VQFN-32
高度 0.95 mm
封装 VQFN-32
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UCD9080RHBRG4 TI 德州仪器 | 当前型号 | 当前型号 |
UCD9080RHBR 德州仪器 | 完全替代 | UCD9080RHBRG4和UCD9080RHBR的区别 |
UCD9080RHBTG4 德州仪器 | 完全替代 | UCD9080RHBRG4和UCD9080RHBTG4的区别 |
UCD9080RHBT 德州仪器 | 类似代替 | UCD9080RHBRG4和UCD9080RHBT的区别 |
