TEXAS INSTRUMENTS UCC283TDKTTT-ADJ 电压稳压器, LDO, 可调, 2.8V至9V输入, 400mV压差, 1.2V至8.5V/3A输出, TO-263-5
PMIC - 稳压器 - 线性 正 可调式 输出 3A DDPAK/TO-263-5
得捷:
IC REG LIN POS ADJ 3A DDPAK
e络盟:
TEXAS INSTRUMENTS UCC283TDKTTT-ADJ 电压稳压器, LDO, 可调, 2.8V至9V输入, 400mV压差, 1.2V至8.5V/3A输出, TO-263-5
艾睿:
Having trouble maintaining a steady voltage? This LDO UCC283TDKTTT-ADJ linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.4@3A|0.2@1500mA|0.05@10mA V. This voltage regulation device&s;s single output can produce a current up to 3 A. By only needing an input voltage of 2.8 V with a maximum of 9 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.22 to 8.5 V, this is power management at its best. By operating at a load regulation of 5mV and line regulation of 3mV you can provide a constant voltage at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.6@3A|0.45@1500mA|0.15@10mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.
安富利:
LDO Regulator Pos 1.22V to 8.5V 3A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 3.0A, Adj.1.22 to 8.5V, Reverse Current Protection, Thermal Shutdown LDO Regulator Pos 1.22V to 8.5V 3A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.22V to 8.5V 3A 6-Pin5+Tab TO-263 T/R
输出接口数 1
输入电压DC 9.00V max
输出电压 1.22V ~ 8.5V
输出电流 3 A
供电电流 650 µA
针脚数 5
静态电流 400 µA
输出电容类型 Tantalum
跌落电压 400 mV
调节输出数 1
输入电压Max 9 V
输入电压Min 2.8 V
输出电压Max 8.5 V
输出电压Min 1.2 V
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.8V ~ 9V
安装方式 Surface Mount
引脚数 5

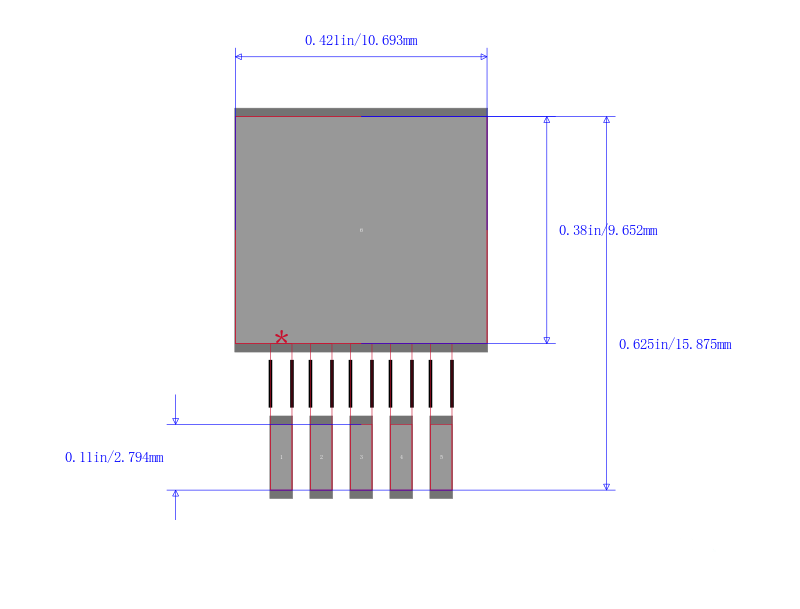

封装 TO-263-6
宽度 8.42 mm
封装 TO-263-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC283TDKTTT-ADJ TI 德州仪器 | 当前型号 | 当前型号 |
UCC383TDKTTT-ADJ 德州仪器 | 类似代替 | UCC283TDKTTT-ADJ和UCC383TDKTTT-ADJ的区别 |
UCC283TDKTTT-ADJG3 德州仪器 | 类似代替 | UCC283TDKTTT-ADJ和UCC283TDKTTT-ADJG3的区别 |
UCC283TDTR-ADJG3 德州仪器 | 类似代替 | UCC283TDKTTT-ADJ和UCC283TDTR-ADJG3的区别 |
