门驱动器 Inverting High-Speed
description
The UC3709 family of power drivers is an effective low-cost solution to the problem of providing fast turn-on and off for the capacitive gates of power MOSFETs. Made with a high-speed Schottky process, these devices will provide up to 1.5 A of either source or sink current from a totem--pole output stage configured for minimal cross-conduction current spike.
1.5 Amp Source/Sink Drive
Pin Compatible with 0026 Products
40 ns Rise and Fall into 1000pF
Low Quiescent Current
5 V to 40 V Operation
Thermal Protection
电源电压DC 40.0V max
上升/下降时间 20 ns
输出接口数 2
耗散功率 1000 mW
上升时间 80 ns
下降时间 80 ns
下降时间Max 80 ns
上升时间Max 80 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 5V ~ 40V
电源电压Min 5 V
安装方式 Surface Mount

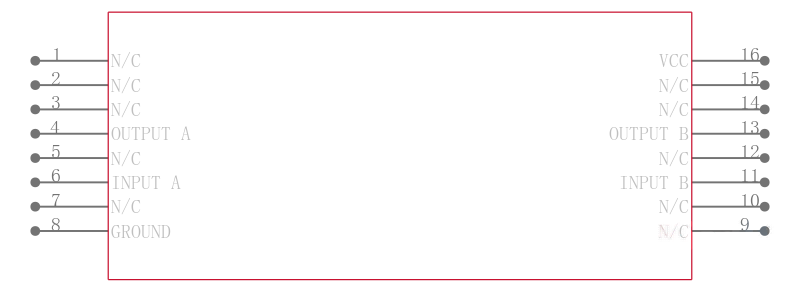

引脚数 16

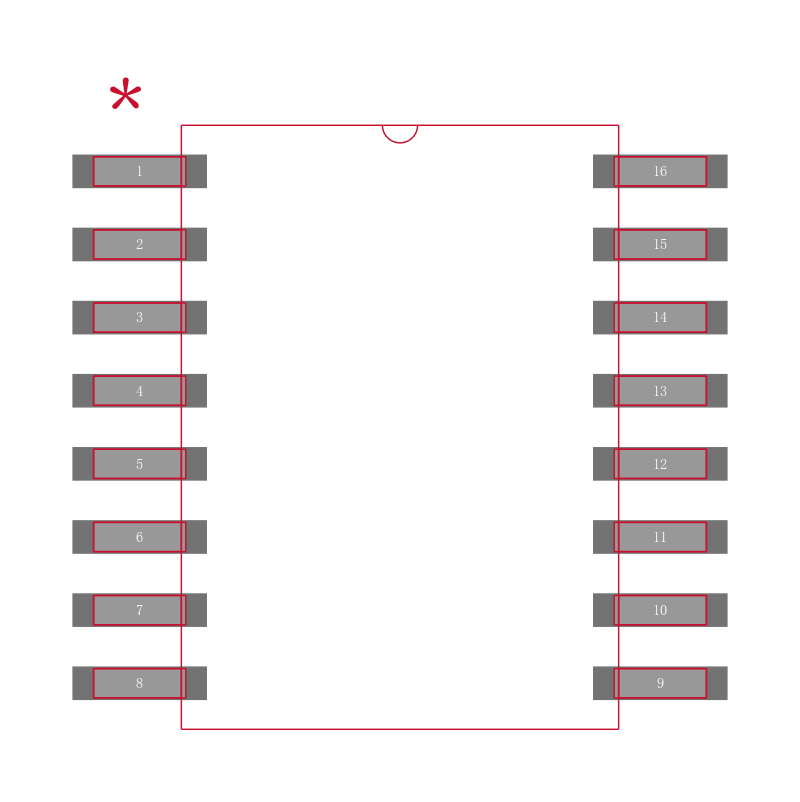

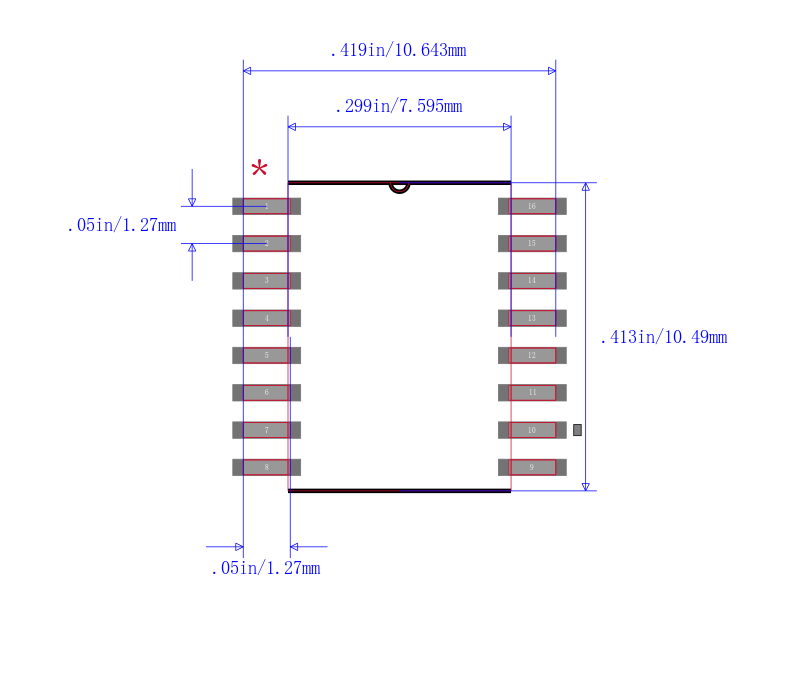

封装 SOIC-16
高度 2.35 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC2709DW TI 德州仪器 | 当前型号 | 当前型号 |
UC2709DWG4 德州仪器 | 完全替代 | UC2709DW和UC2709DWG4的区别 |
UC3709DW 德州仪器 | 类似代替 | UC2709DW和UC3709DW的区别 |
UC3709DWTR 德州仪器 | 功能相似 | UC2709DW和UC3709DWTR的区别 |
