低压差3 -A线性稳压器系列 LOW-DROPOUT 3-A LINEAR REGULATOR FAMILY
description
The UCC283−3/−5/−ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC283−5 passes 3 A while requiring only 0.45 V of typical input voltage headroom ensured 0.6-V dropout.
• Precision Positive Linear Series Pass Voltage Regulation
• 0.45 V Dropout at 3 A
• 50 mV Dropout at 10 mA
• Quiescent Current Under 650 µA Irrespective of Load
• Adjustable 5-Lead Output Voltage Version
• Fixed 3-Lead Versions for 3.3-V and 5-V Outputs
• Logic Shutdown Capability
• Short-Circuit Power Limit of 3% × VIN × ISHORT
• Low VOUT to VIN Reverse Leakage
• Thermal Shutdown
输出接口数 1
输出电压 3.3 V
输出电流 3 A
静态电流 0.4 mA
输出电容类型 Tantalum
跌落电压 0.05V @10mA,0.25V @1500mA,0.5V @3A
调节输出数 1
输入电压Max 9 V
输入电压Min 3.85 V
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 ≤9 V
安装方式 Through Hole
引脚数 3

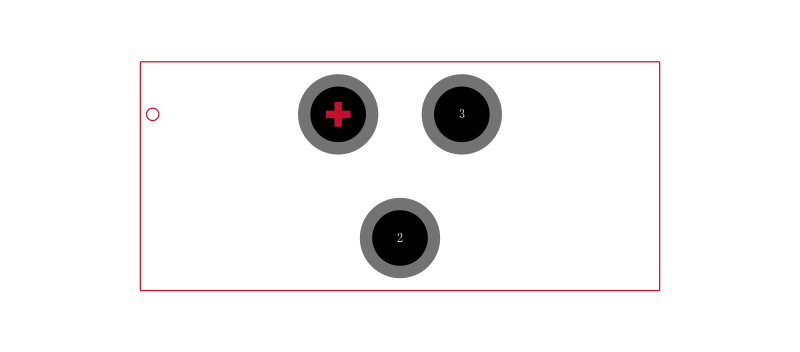

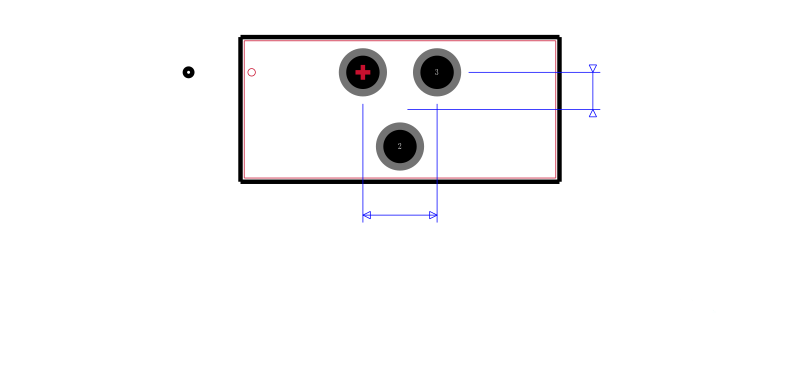

封装 TO-220-3
封装 TO-220-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
