的BiCMOS PFC / PWM组合控制器 BiCMOS PFC/PWM COMBINATION CONTROLLER
DESCRIPON
The UCC2850x family provides all of the control functions necessary for an active power-factor
corrected preregulator and a second-stage dc-to- dc converter. The controller achieves near-unity power factor by shaping the ac input line current waveform to correspond to the ac input-line voltage using average current-mode control. The dc-to-dc converter uses peak current-mode control to perform the step-down power conversion.
频率 200 kHz
电源电压DC 18.0V max
输出接口数 2
供电电流 4.00 mA
开关频率 100 kHz
最大占空比 100 %
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 9.7V ~ 18V
安装方式 Through Hole

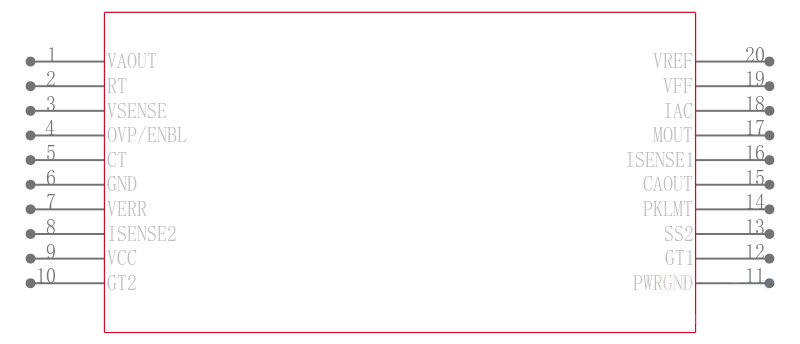

引脚数 20

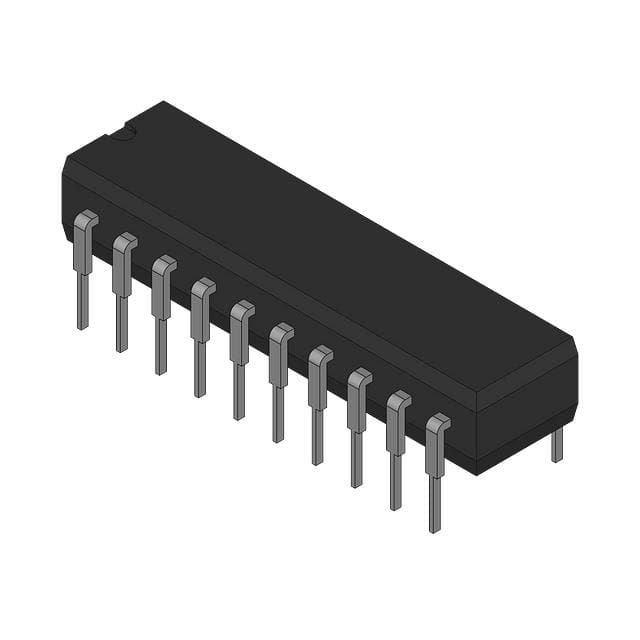

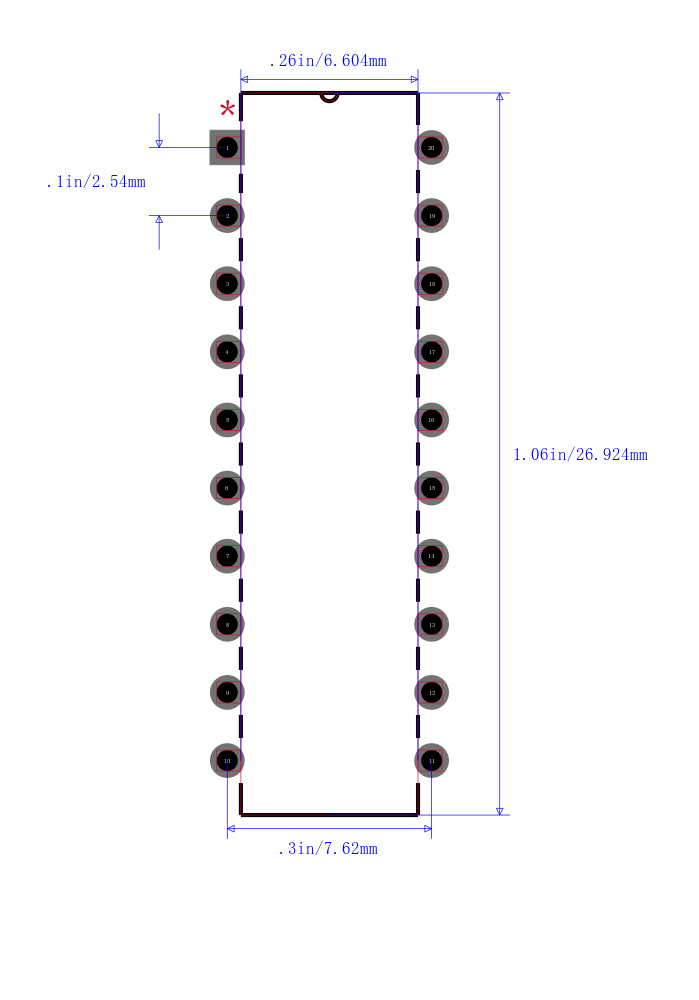

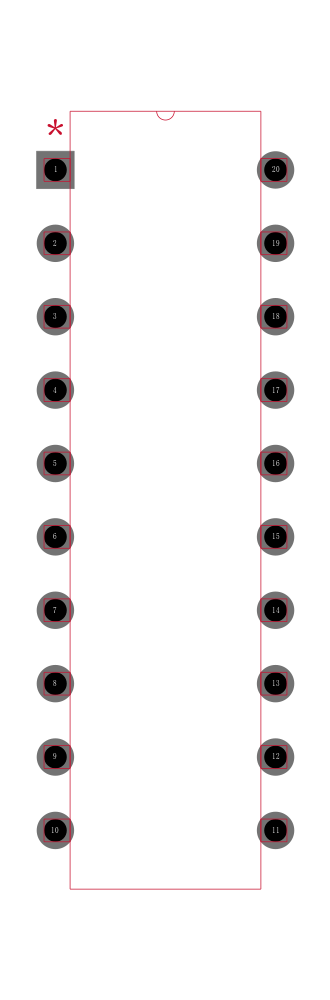

封装 PDIP-20
长度 24.33 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC38501N TI 德州仪器 | 当前型号 | 当前型号 |
UCC38501NG4 德州仪器 | 功能相似 | UCC38501N和UCC38501NG4的区别 |
