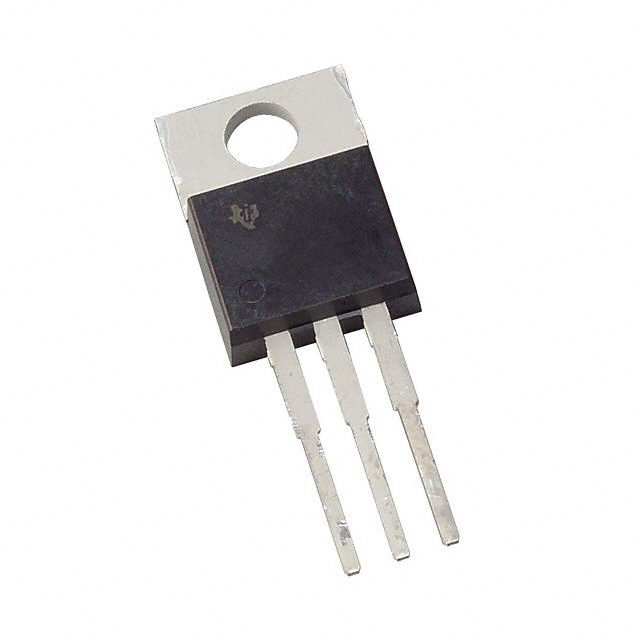

UCC383T-3

低压差3 -A线性稳压器系列 LOW DROPOUT 3-A LINEAR REGULATOR FAMILY

description

The UCC283−3/−5/−ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC283−5 passes 3 A while requiring only 0.45 V of typical input voltage headroom ensured 0.6-V dropout.

• Precision Positive Linear Series Pass Voltage Regulation

• 0.45 V Dropout at 3 A

• 50 mV Dropout at 10 mA

• Quiescent Current Under 650 µA Irrespective of Load

• Adjustable 5-Lead Output Voltage Version

• Fixed 3-Lead Versions for 3.3-V and 5-V Outputs

• Logic Shutdown Capability

• Short-Circuit Power Limit of 3% × VIN × ISHORT

• Low VOUT to VIN Reverse Leakage

• Thermal Shutdown
