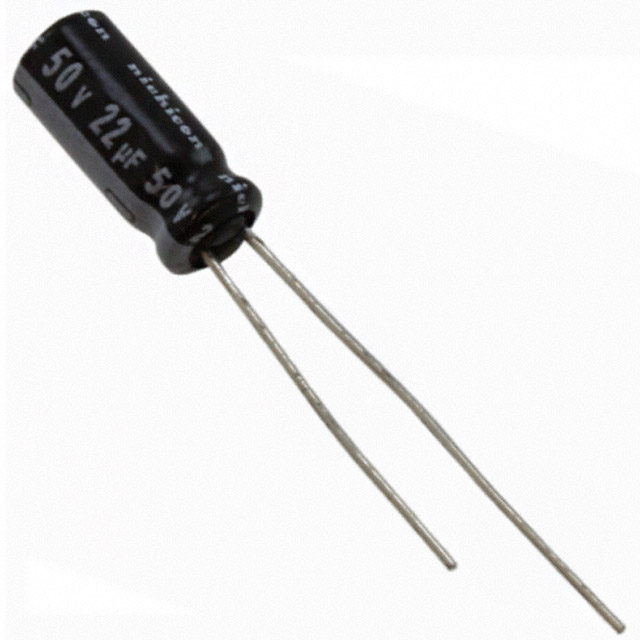

UVK1H220MDD

22uF ±20% 50V Φ5mm 11mm

22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 22UF 20% 50V RADIAL

立创商城:
22uF ±20% 50V

艾睿:
Using the aluminum anode based electrolytic UVK1H220MDD electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.5 mm and a pitch of 2 mm. The UVK1H220MDD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 33@1Min|11@2Min μA. Its capacitance value is 22uF. This product is 11 mm tall with a diameter of 5 mm. It has a tolerance of 20%.
