1uF ±20% 50V Φ5mm 11mm

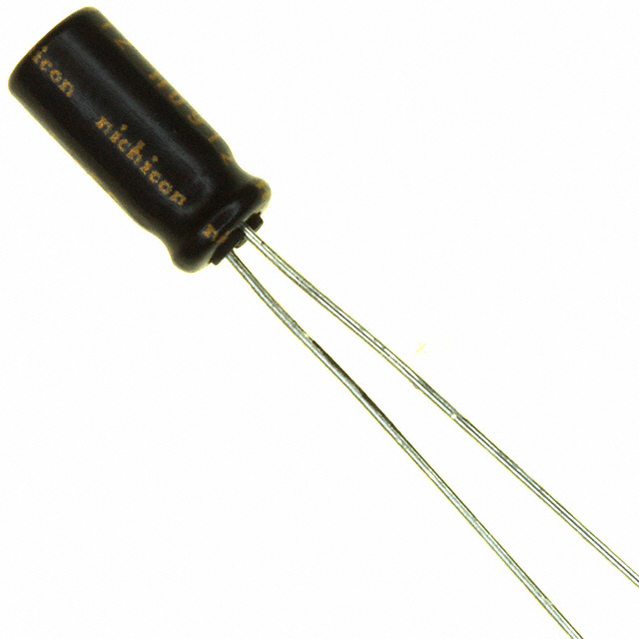

Use this relatively high equivalent series resistance electrolytic aluminum capacitor from to generate high heat for a given current level. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 11 mm tall with a diameter of 5 mm. Its leakage current is 4@1Min|3@2Min μA. This part has a lead diameter of 0.5 mm and a pitch of 2 mm. The UKW1H010MDD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 1uF.
额定电压DC 50 V
电容 1 µF
容差 ±20 %
产品系列 UKW
纹波电流 10 mA
纹波电流高频 10mA @120Hz
纹波电流低频 20mA @10kHz
工作温度Max 85 ℃
工作温度Min 40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 2 mm
长度 11 mm
高度 11 mm
直径 5.00 mm
封装 Radial, CAN
引脚间距 2 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Bulk
最小包装 6000
寿命（小时） 2000 h
制造应用 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UKW1H010MDD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UFW1H010MDD 尼吉康 | 功能相似 | UKW1H010MDD和UFW1H010MDD的区别 |
