Texas Instruments### 电动机控制器和驱动器,Texas Instruments
运动/电动机控制器,Texas Instruments
得捷:
IC BRIDGE DRIVER PAR 16DIP
立创商城:
UC3770AN
德州仪器TI:
High Performance Stepper Motor Drive Circuit
欧时:
### 运动/电动机控制器,Texas Instruments### 电动机控制器和驱动器,Texas Instruments
艾睿:
The stepper UC3770AN stepper motor driver, developed by Texas Instruments, can help you automate different machines such as hydraulic pumps and linear actuators. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 10 V and a maximum of 45 V. This motor controller has a minimum operating temperature of 0 °C and a maximum of 70 °C.
TME:

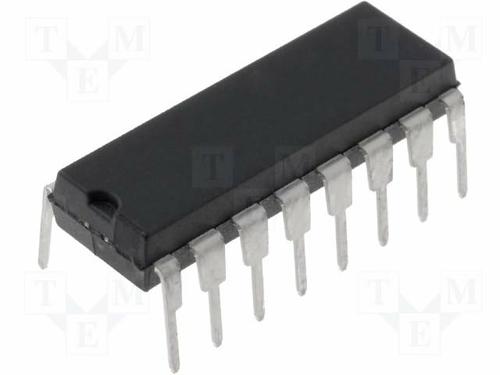

Driver; stepper motor controller; 2A; 50V; Channels:1; DIP16
Verical:
High Performance Stepper Motor Drive Circuit
Newark:
# TEXAS INSTRUMENTS UC3770AN Motor Driver/Controller, Stepper, 4.75V to 5.3V supply, 45V/2 A/2 Outputs, DIP-16
DeviceMart:
IC STEPPER MOTOR DRV CIRC 16-DIP
电源电压DC 48.0 V
输出接口数 2
输出电压 45 V
输出电流 2 A
供电电流 40 mA
通道数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.3V
电源电压Max 5.3 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 16
封装 PDIP-16
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 通用,步进电机
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC3770AN TI 德州仪器 | 当前型号 | 当前型号 |
UC3770BN 德州仪器 | 类似代替 | UC3770AN和UC3770BN的区别 |
UC3770ANG4 德州仪器 | 功能相似 | UC3770AN和UC3770ANG4的区别 |
UC3770BNG4 德州仪器 | 功能相似 | UC3770AN和UC3770BNG4的区别 |
