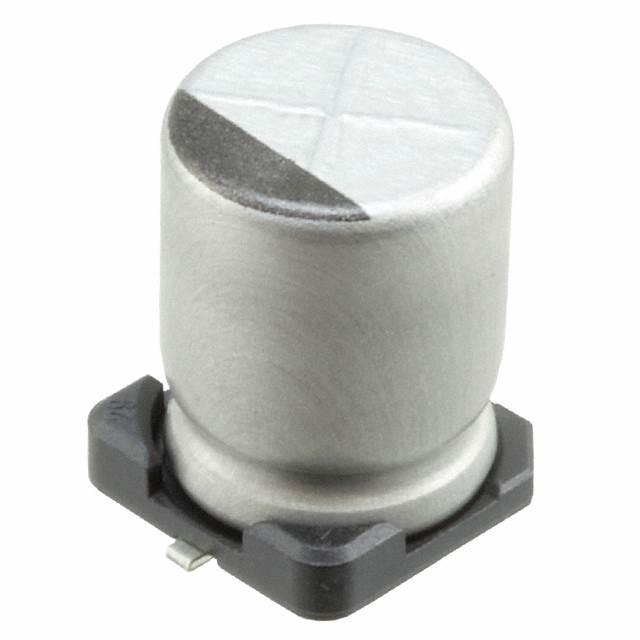

CD 系列低阻抗### 表面安装 105°C 系列
CD 系列低阻抗
立创商城:
150uF ±20% 25V
得捷:
CAP ALUM 150UF 20% 25V SMD
欧时:
Nichicon 铝电解电容器 CD 系列 25V dc 150μF 表面安装器件 UCD1E151MNL1GS, ±20%容差, 最高+105°C
贸泽:
Aluminum Electrolytic Capacitors - SMD 25volts 150uF
艾睿:
Using this electrolytic UCD1E151MNL1GS aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 10 mm tall with a diameter of 8 mm. Its capacitance value is 150uF. Its leakage current is 37.5@2Min μA. It has a tolerance of 20%.
Allied Electronics:
150uF 25 V dc Aluminium Electrolytic Capacitor, CD Series 5000h 8 Dia. x 10mm
安富利:
Cap Aluminum 150uF 25V 20% 8 X 10mm SMD 600mA 5000 hr 105°C T/R
Chip1Stop:
Cap Aluminum Lytic 150uF 25V 20% 8 X 10mm SMD 600mA 5000h 105ÂÂ℃ T/R
TME:
Capacitor: electrolytic; low impedance; SMD; 150uF; 25V; Ø8x10mm
Verical:
Cap Aluminum Lytic 150uF 25V 20% 8 X 10mm SMD 600mA 5000h 105C Automotive T/R
额定电压DC 25 V
工作电压 25 VDC
电容 150 µF
等效串联电阻ESR 0.16 Ω
容差 ±20 %
产品系列 UCD
纹波电流 600 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装 SMD
长度 10 mm
高度 10 mm
直径 8.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 5000 h
制造应用 汽车级, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCD1E151MNL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
EEE-FP1E151AP 松下 | 功能相似 | UCD1E151MNL1GS和EEE-FP1E151AP的区别 |
UCD1V151MNL1GS 尼吉康 | 功能相似 | UCD1E151MNL1GS和UCD1V151MNL1GS的区别 |
AFK157M25F24T-F Cornell Dubilier ElectronicsCDE | 功能相似 | UCD1E151MNL1GS和AFK157M25F24T-F的区别 |
