UTT1H220MDD

TT 系列 22 uF 50 V 105°C Ø6.3 x 9 mm LS=2.5mm 径向 铝 电解电容

22 µF 50 V 铝电解器 径向，Can - 105°C 时为 5000 小时

得捷:
CAP ALUM 22UF 20% 50V RADIAL

立创商城:
22uF ±20% 50V

艾睿:

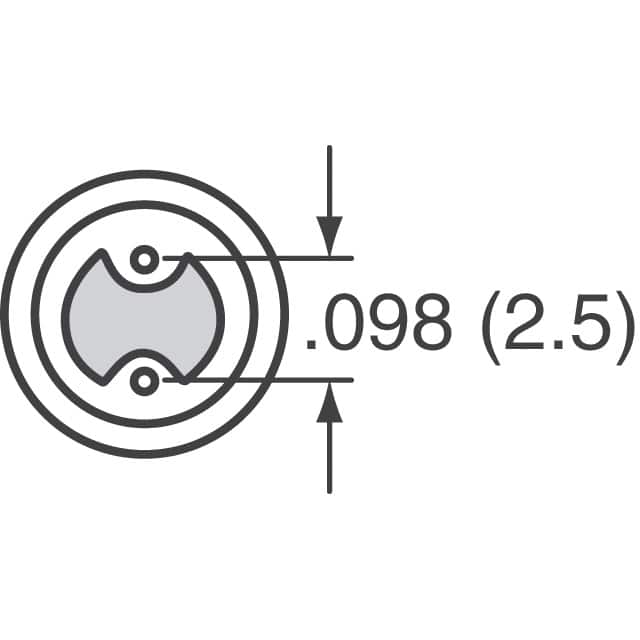

Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UTT1H220MDD aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its leakage current is 3@2Min μA. Its capacitance value is 22uF. The UTT1H220MDD aluminum electrolytic capacitor has a radial termination style. This product is 9 mm tall with a diameter of 6.3 mm.

安富利:

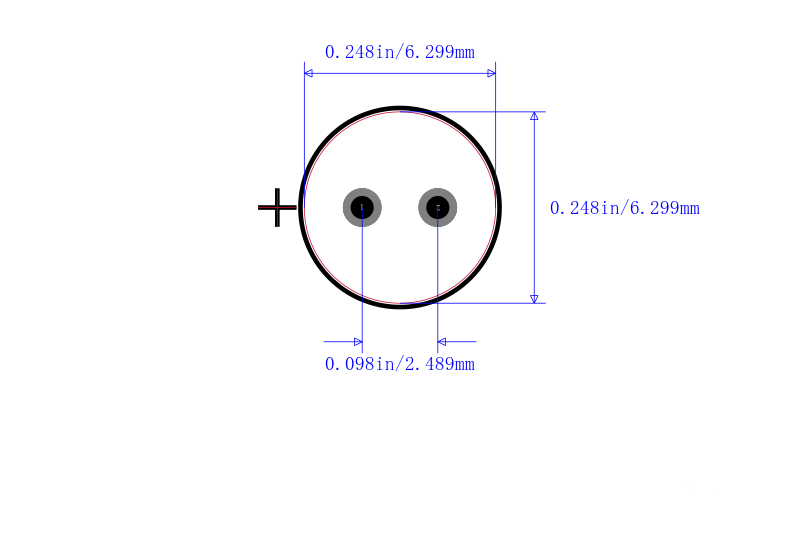

Cap Aluminum 22uF 50V 20% 6.3 X 9mm Radial Aluminum Cylindrical Can 2.5mm 112mA 5000hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 22uF; 50VDC; Ø6.3x9mm
