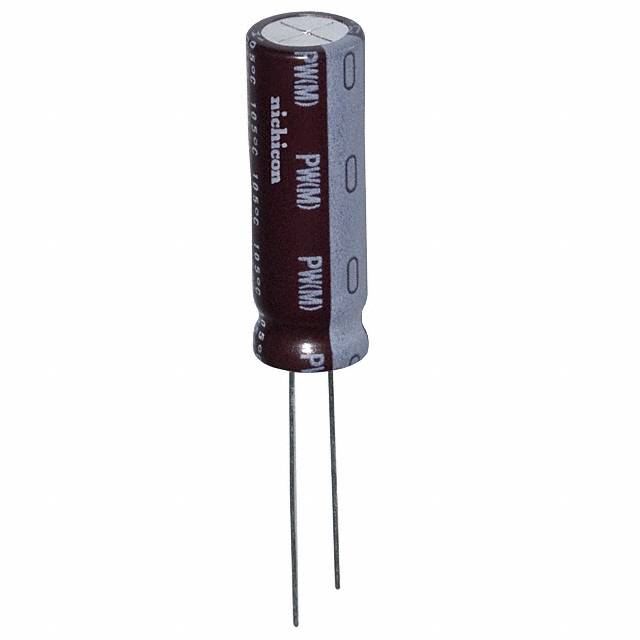

UPW1C152MPD6

NICHICON  UPW1C152MPD6  铝电解电容, 1500uF, 16V, 径向引线

Aluminum Electrolytic Capacitors PW Series Miniature sized, low Impedance, High Reliability for switching power supplies.

**Features:**

* Smaller Case Size and Lower Impedance Than PM Series

* Low Impedance and High Reliability Withstanding 2000 Hours to 8000 Hours

* Capacitance Ranges Available Based on the Numerical Values in E12 Series Under JIS

立创商城:
1500uF ±20% 16V

得捷:
CAP ALUM 1500UF 20% 16V RADIAL

e络盟:
铝电解电容, 1500uF, 16V, 径向引线

艾睿:
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UPW1C152MPD6 electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%. Its leakage current is 720@1Min μA. The UPW1C152MPD6 aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1500uF. This product is 31.5 mm tall with a diameter of 10 mm.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap 1500uF 16V 20% Radial 10X31.5 LS 5 mm

安富利:
Cap Aluminum 1500uF 16V 20% 10 X 31.5mm Radial 5mm 1815mA 5000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 1500uF 16V 20% 10 X 31.5mm Radial 5mm 1815mA 5000h 105℃ Automotive Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 1500uF; 16VDC; ±20%

Verical:
Cap Aluminum Lytic 1500uF 16V 20% 10 X 31.5mm Radial 5mm 1815mA 5000h 105C Automotive Bulk

Newark:
# NICHICON  UPW1C152MPD6  Electrolytic Capacitor, Miniature, 1500 µF, 16 V, PW Series, ± 20%, Radial Leaded, 10 mm
