UVP1H331MHD

330uF ±20% 50V Φ16mm 25mm

330 µF 50 V 铝电解器 径向，Can - 85°C 时为 2000 小时

立创商城:
330uF ±20% 50V

得捷:
CAP ALUM 330UF 20% 50V RADIAL

艾睿:

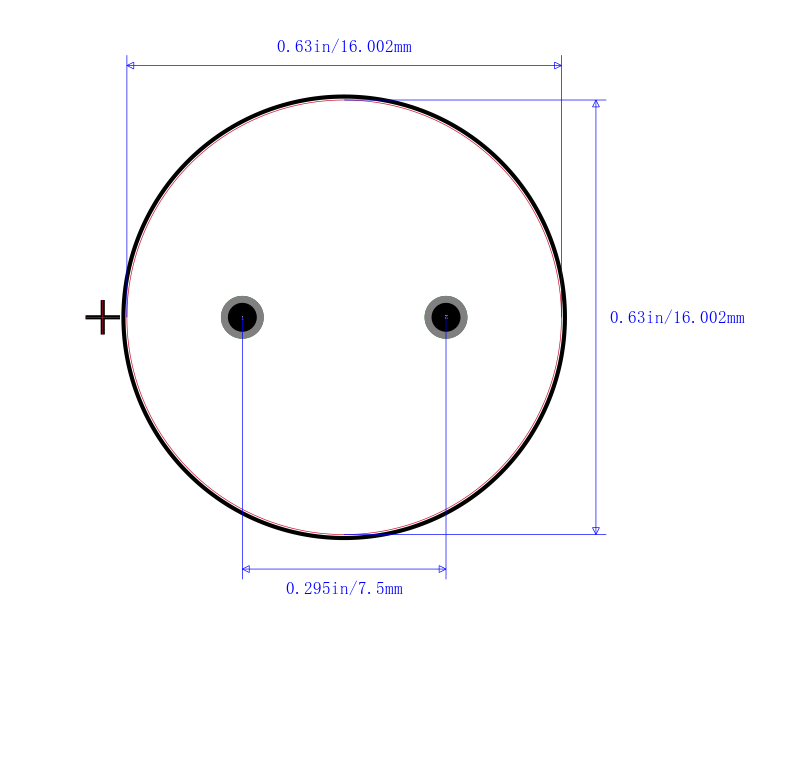

Manufactured from Nichicon, this electrolytic UVP1H331MHD aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. The UVP1H331MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 495@5Min μA. Its capacitance value is 330uF. This product is 25 mm tall with a diameter of 16 mm.

安富利:
Cap Aluminum 330uF 50V 20% 16 X 25mm Radial 7.5mm 650mA 2000 hr 85°C Bulk

Verical:
Cap Aluminum Lytic 330uF 50V 20% 16 X 25mm Radial 7.5mm 650mA 2000h 85C Automotive Bulk
