UPJ1V152MHD

1.5mF ±20% 35V 2360mA100kHz2360mA Φ12.5mm

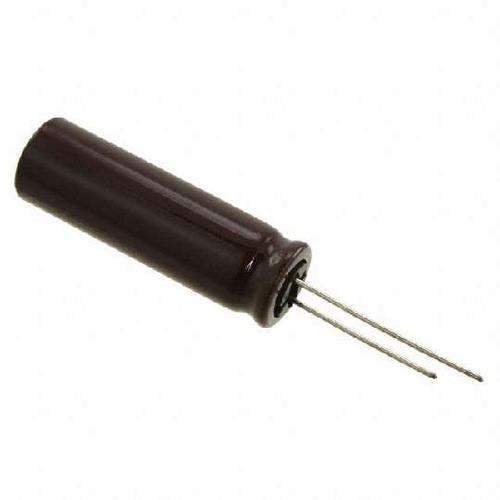

Using this electrolytic aluminum capacitor from in your electronic circuit you"ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 40 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.8 mm and a pitch of 5 mm. Its leakage current is 1575@1Min μA. Its capacitance value is 1500uF. The UPJ1V152MHD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%.
