UPM1H821MHD

820uF ±20% 50V 2120mA100kHz2120mA Φ12.5mm

铝电解器 径向，Can - 105°C 时为 5000 小时

立创商城:
820uF ±20% 50V

得捷:
CAP ALUM 820UF 20% 50V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 50volts 820uF 12.5x40 20% 5LS

艾睿:

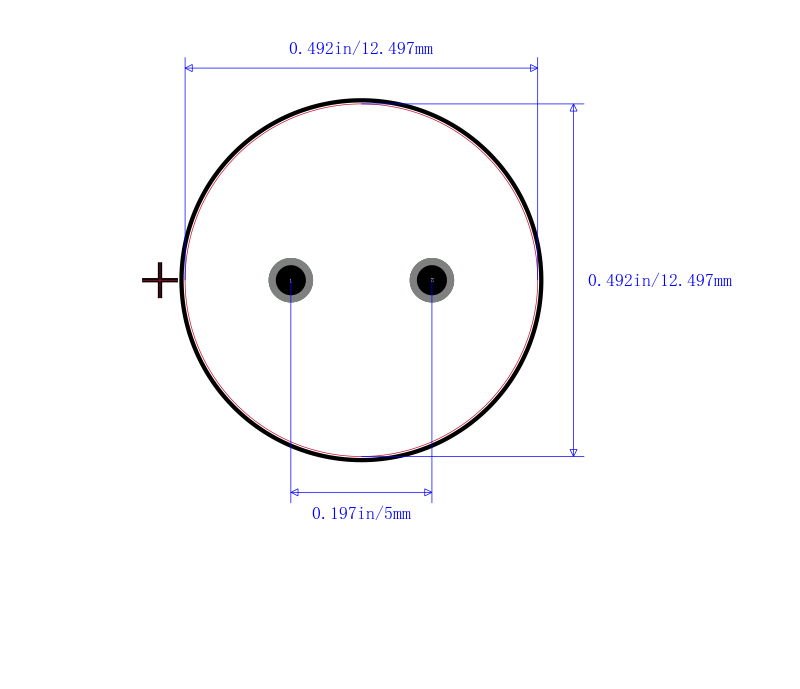

Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UPM1H821MHD aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 1230@1Min μA. This product is 40 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.8 mm and a pitch of 5 mm. Its capacitance value is 820uF. The UPM1H821MHD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%.

安富利:
Cap Aluminum 820uF 50V 20% 12.5 X 40mm Radial 5mm 1700mA 5000h 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 820uF; 50VDC; ±20%

Verical:
Cap Aluminum Lytic 820uF 50V 20% 12.5 X 40mm Radial 5mm 1700mA 5000h 105C Bulk
