UPW1C392MHD6

3.9mF ±20% 16V 2490mA100kHz2490mA Φ18mm

3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C

得捷:
CAP ALUM 3900UF 20% 16V RADIAL

立创商城:
3900uF ±20% 16V

艾睿:

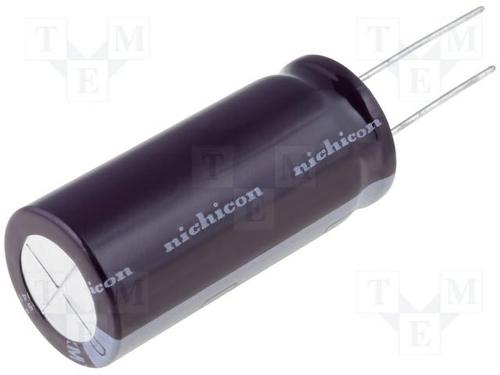

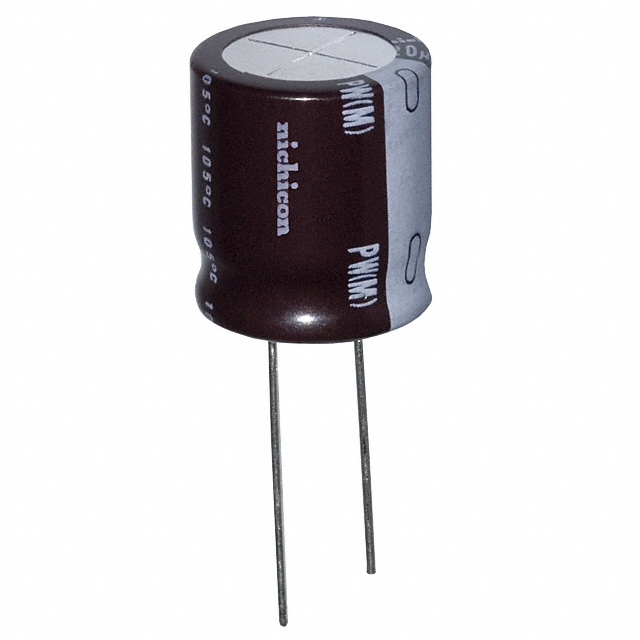

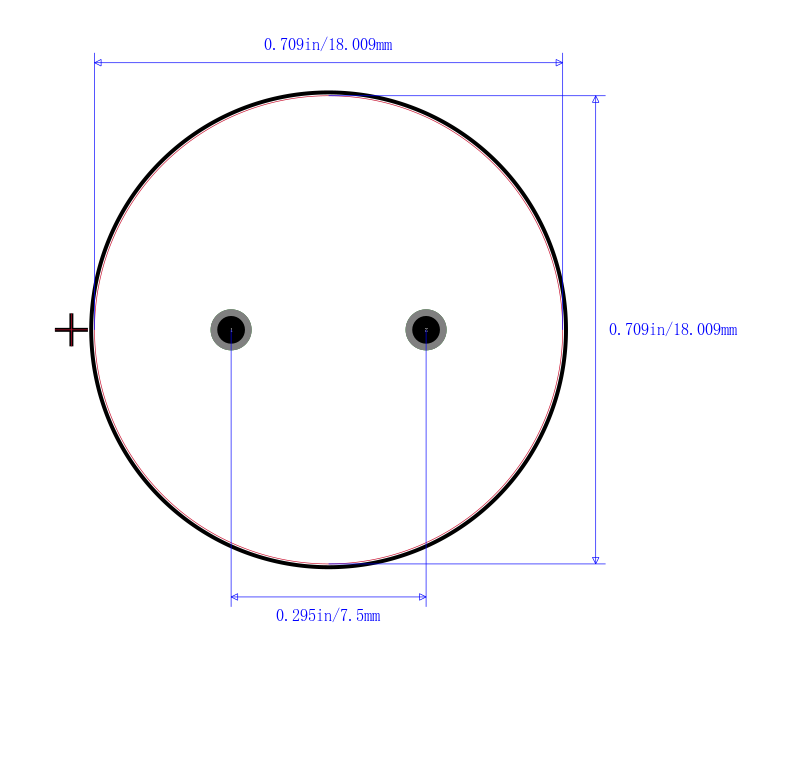

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic UPW1C392MHD6 aluminum capacitor from Nichicon is the one for you! It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPW1C392MHD6 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 18 mm. Its leakage current is 1872@1Min μA. Its capacitance value is 3900uF.

安富利:
Cap Aluminum 3900uF 16V 20% 18 X 20mm Radial 7.5mm 2490mA 8000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 3900uF; 16VDC; ±20%
