220uF ±20% 160V Φ16mm 35.5mm
**Features:
**
* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**
**
* Compliant to the RoHS directive 2002/95/EC**
Specifications:
**
* Temperature Range: –55°C to +105°C**
**
* Rated Voltage Range: 6.3-450 V**
**
* Rated Capacitance Range: 0.1 to 33000 μF**
**
* Capacitance Tolerance: ±20% at 120 Hz, 20°C
立创商城:
220uF ±20% 160V
得捷:
CAP ALUM 220UF 20% 160V RADIAL
艾睿:

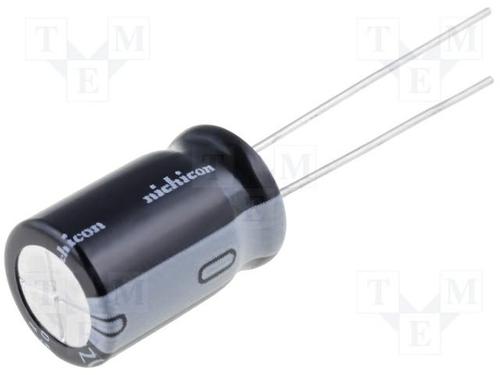

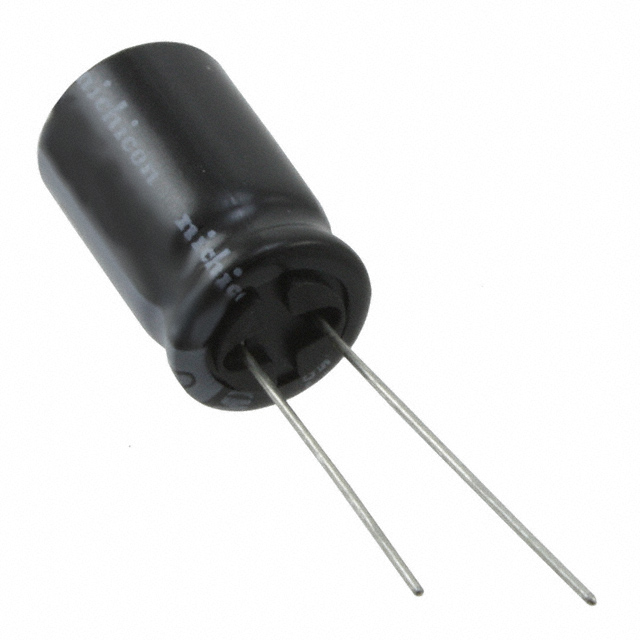

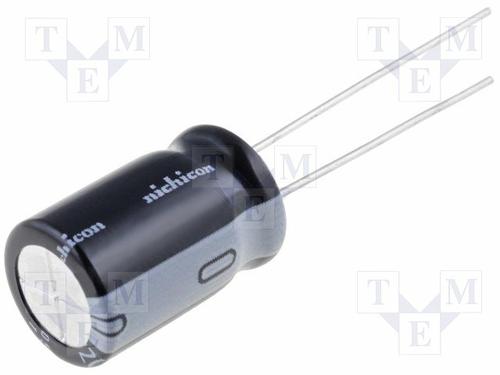

This electrolytic UVZ2C221MHD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 35.5 mm tall with a diameter of 16 mm. It has a tolerance of 20%. Its capacitance value is 220uF. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The UVZ2C221MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 1508@1Min μA.
Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 220uF 20% Radial 16X35.5 LS 7.5mm
安富利:
Cap Aluminum 220uF 160V 20% 16 X 35.5mm Radial 7.5mm 570mA 1000 hr 105°C Bulk
TME:
Capacitor: electrolytic; THT; 220uF; 160VDC; Ø16x35.5mm; ±20%
额定电压DC 160 V
工作电压 160 VDC
电容 220 µF
容差 ±20 %
产品系列 UVZ
纹波电流 570 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 160 V
安装方式 Through Hole
引脚数 2

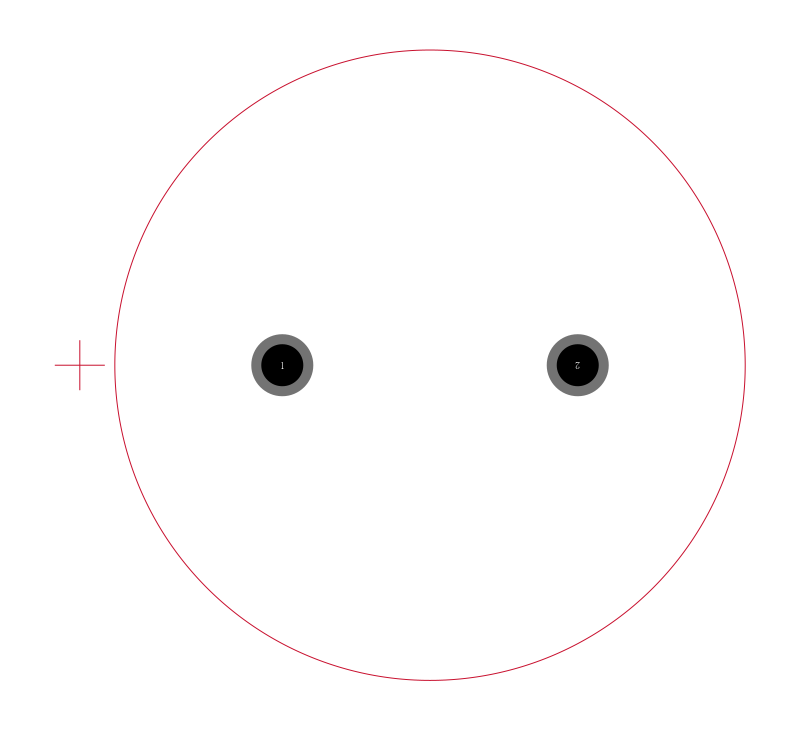

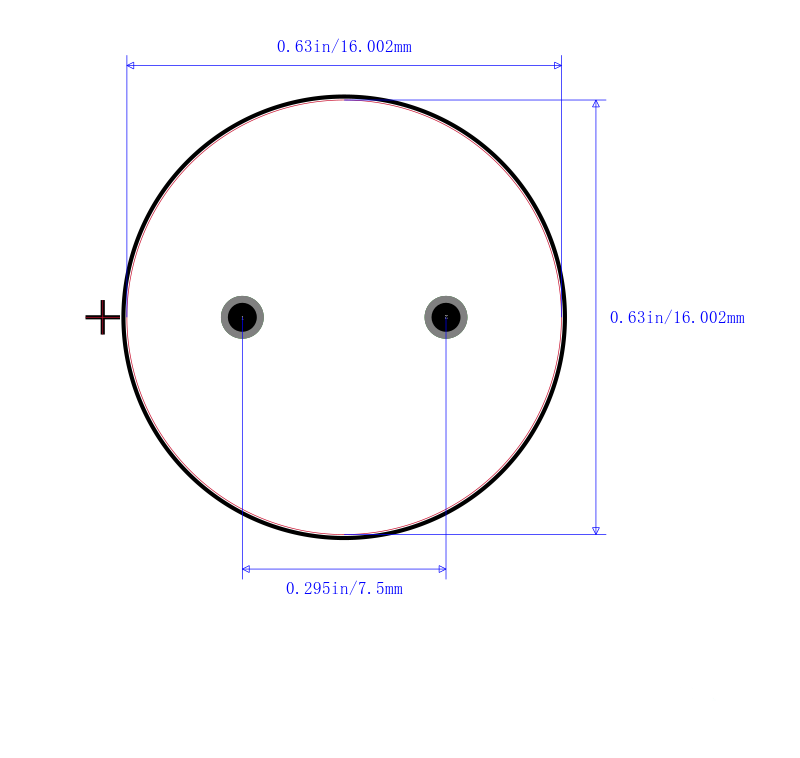

封装 Radial, CAN
引脚间距 7.5 mm
长度 35.5 mm
高度 35.5 mm
直径 16.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 300
寿命(小时) 1000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UVZ2C221MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UVZ2C221MHH 尼吉康 | 完全替代 | UVZ2C221MHD和UVZ2C221MHH的区别 |
