快速暂态REPONSE 5 -A低压降稳压器 FAST TRANSIENT REPONSE 5-A LOW-DROPOUT REGULATOR
PMIC - 稳压器 - 线性 正 固定 输出 5A DDPAK/TO-263-5
立创商城:
UC285TDKTTT-3
德州仪器TI:
5-A, ultra-low-dropout voltage regulator with reverse current protection from -40°C to 100°C
得捷:
IC REG LIN 2.5V 5A DDPAK/TO263-5
贸泽:
低压差稳压器 Fast Tran Res 5 Amp
艾睿:
Having trouble maintaining a steady voltage? This LDO UC285TDKTTT-3 linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.35@5A V. This voltage regulation device&s;s single output can produce a current up to 5 A. By working with a maximum input voltage of 7.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 4mV. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive. The maximum dropout voltage is 0.425@5A V.
安富利:
LDO Regulator Pos 2.5V 5A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
Single Channel LDO Fast Transient Response 5 Ampere Low Dropout Regulator LDO Regulator Pos 2.5V 5A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 2.5V 5A 6-Pin5+Tab TO-263 T/R
输出接口数 1
输入电压DC 7.50V max
输出电压 2.5 V
输出电流 5 A
静态电流 40.0 mA
输出电容类型 Ceramic
跌落电压 0.35V @5A
调节输出数 1
输入电压Max 7.5 V
输入电压Min 1.7 V
输出电压Min 2.5 V
输出电流Max 5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 7.5 V
安装方式 Surface Mount
引脚数 6

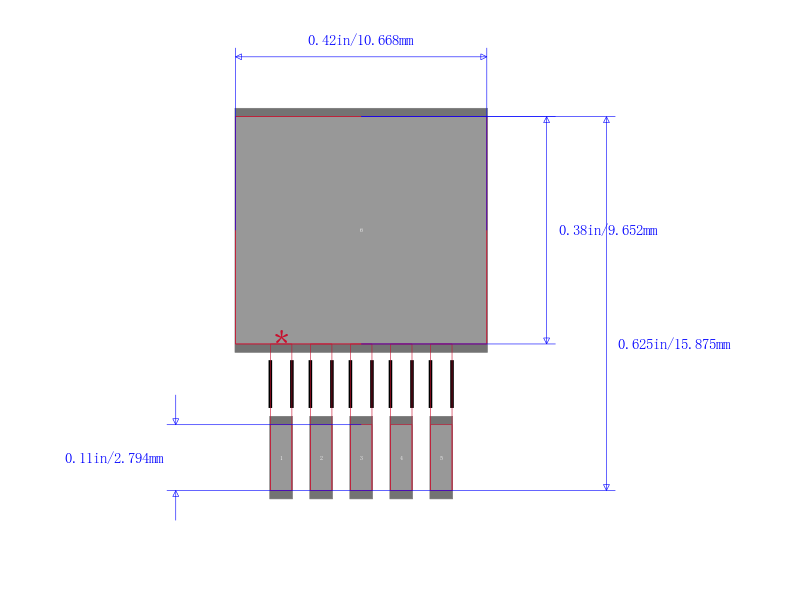

封装 TO-263-6
长度 10.16 mm
宽度 8.42 mm
高度 4.58 mm
封装 TO-263-6
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC285TDKTTT-3 TI 德州仪器 | 当前型号 | 当前型号 |
UC385TDKTTT-3 德州仪器 | 完全替代 | UC285TDKTTT-3和UC385TDKTTT-3的区别 |
UC385TDTR-3 德州仪器 | 类似代替 | UC285TDKTTT-3和UC385TDTR-3的区别 |
UC385TDTR-3G3 德州仪器 | 类似代替 | UC285TDKTTT-3和UC385TDTR-3G3的区别 |
