UPM1V222MHD6

2.2mF ±20% 35V 2720mA100kHz2720mA Φ18mm

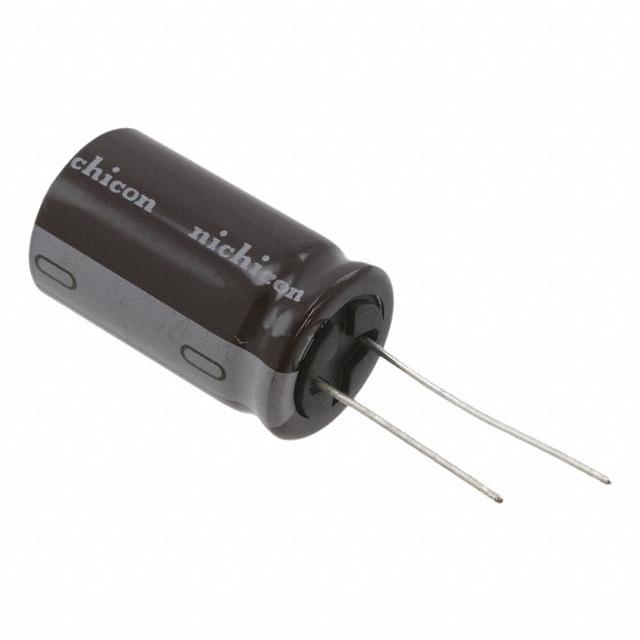

2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

得捷:
CAP ALUM 2200UF 20% 35V RADIAL

立创商城:
2200uF ±20% 35V

艾睿:

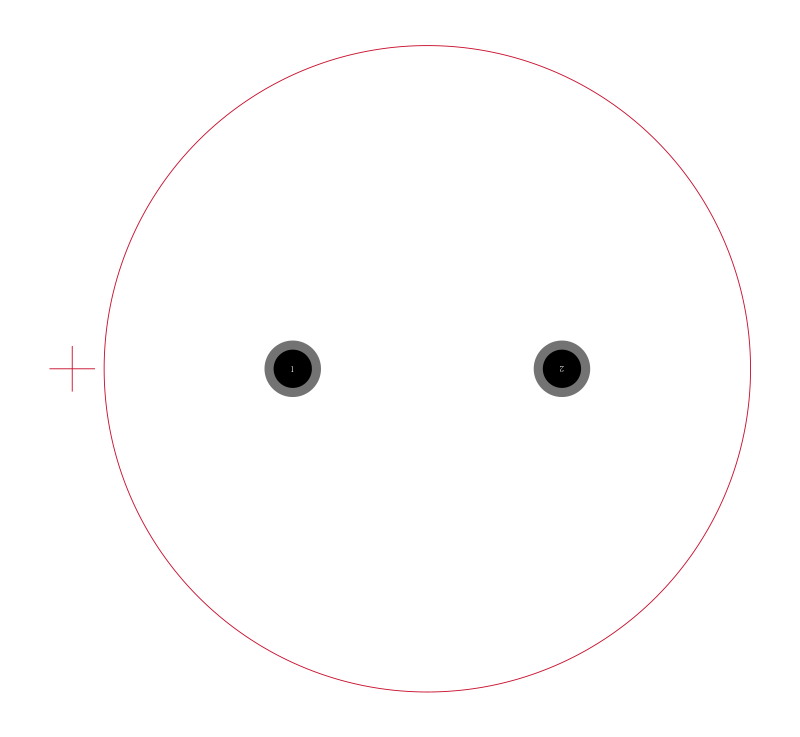

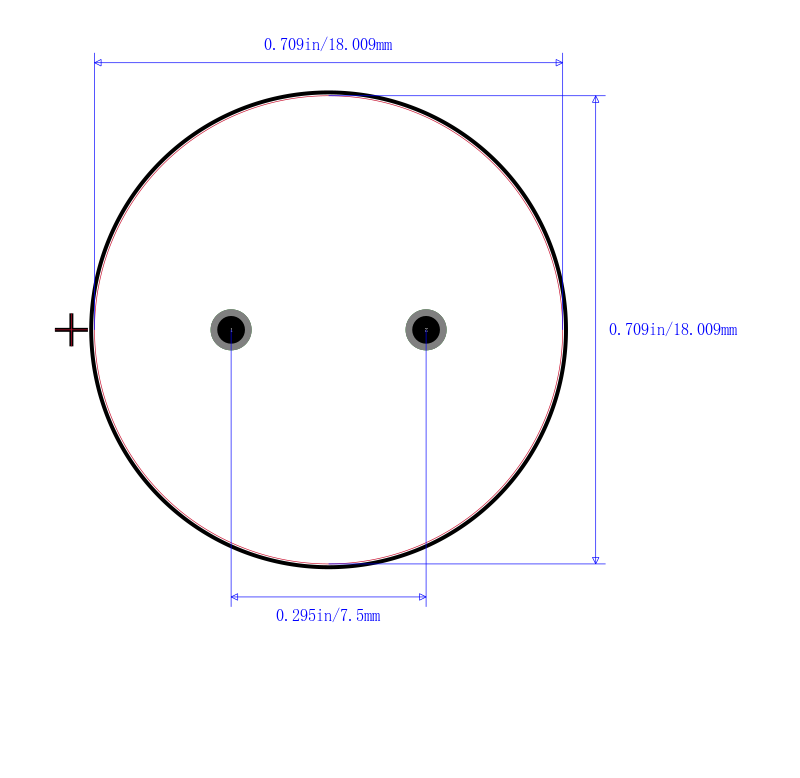

Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UPM1V222MHD6 aluminum capacitor. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPM1V222MHD6 aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 2200uF. Its leakage current is 2310@1Min μA. This product is 31.5 mm tall with a diameter of 18 mm. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%.

安富利:
Cap Aluminum 2200uF 35V 20% 18 X 31.5mm Radial 7.5mm 2240mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 2200uF; 35VDC; ±20%
