10mF ±20% 10V 4220mA100kHz4220mA Φ18mm

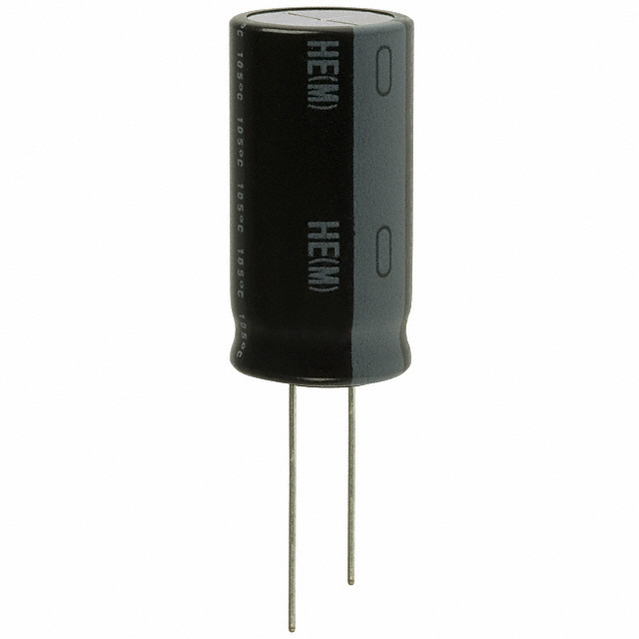

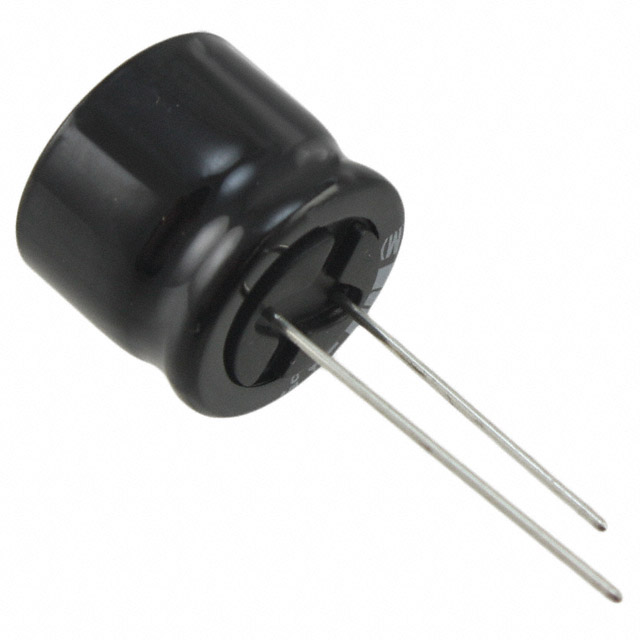

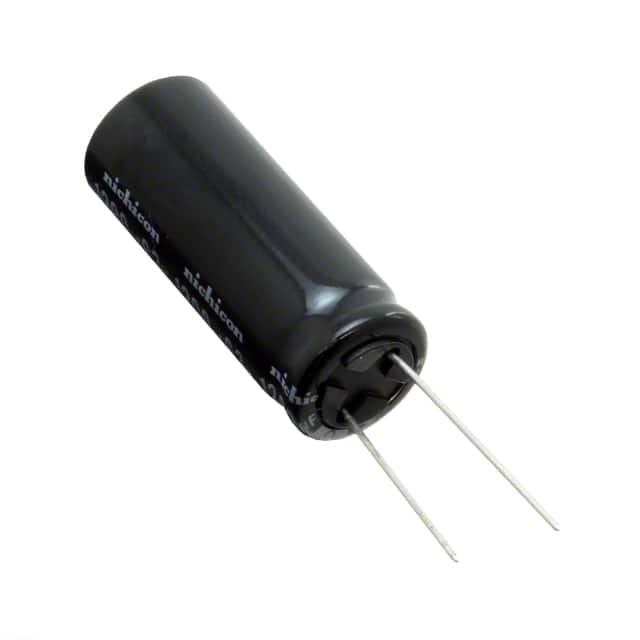

This electrolytic aluminum capacitor from combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHE1A103MHD6 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 1000@2Min μA. Its capacitance value is 10000uF. This product is 35.5 mm tall with a diameter of 18 mm. It has a tolerance of 20%.
额定电压DC 10.0 V
电容 10000 µF
等效串联电阻ESR 38.0 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 4220 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 10 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
长度 35.5 mm
高度 35.5 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 250
寿命（小时） 8000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1A103MHD6 Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE1A103MHT6 尼吉康 | 类似代替 | UHE1A103MHD6和UHE1A103MHT6的区别 |
EKY-100ELL103MMP1S 贵弥功 | 功能相似 | UHE1A103MHD6和EKY-100ELL103MMP1S的区别 |
FL103M NIC | 功能相似 | UHE1A103MHD6和FL103M的区别 |
