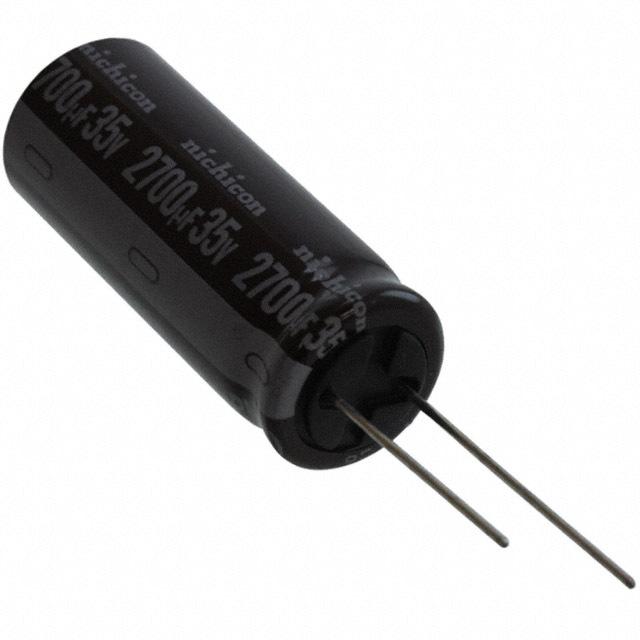

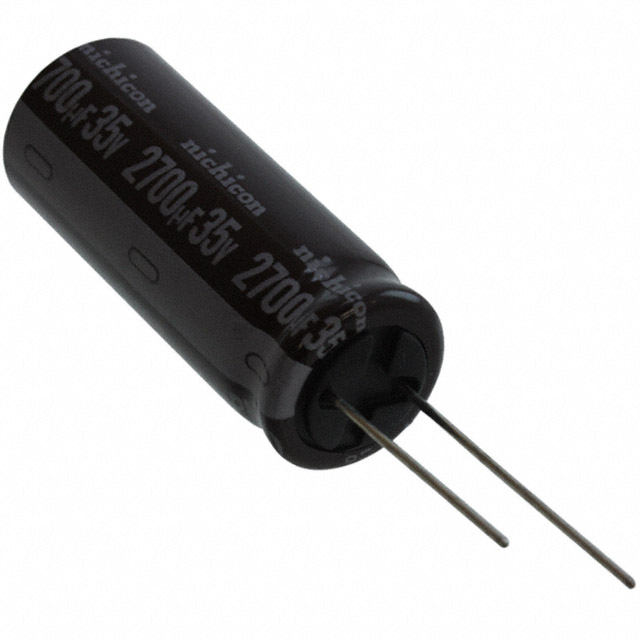

UPM1V272MHD

PM 系列 2700 uF 35 V 20 % 通孔 径向 铝电解电容

2700µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

立创商城:
2700uF ±20% 35V

得捷:
CAP ALUM 2700UF 20% 35V RADIAL

艾睿:

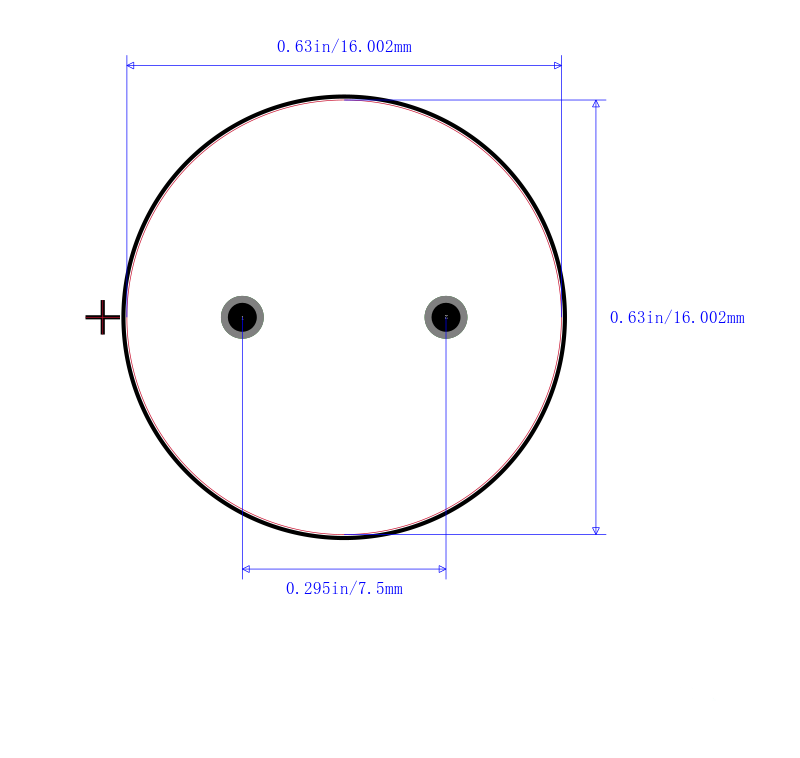

This electrolytic UPM1V272MHD aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 40 mm tall with a diameter of 16 mm. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its capacitance value is 2700uF. It has a tolerance of 20%. Its leakage current is 2835@1Min μA. The UPM1V272MHD aluminum electrolytic capacitor has a radial termination style.

安富利:
Cap Aluminum 2700uF 35V 20% 16 X 40mm Radial 7.5mm 2610mA 5000h 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 2700uF; 35VDC; ±20%
