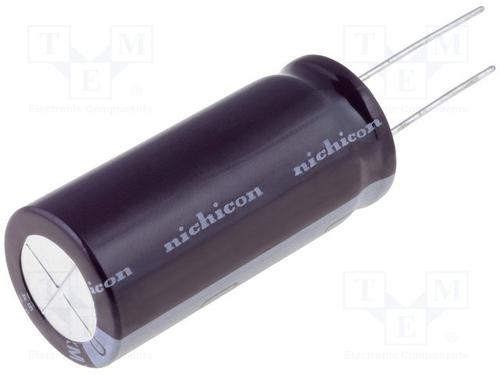

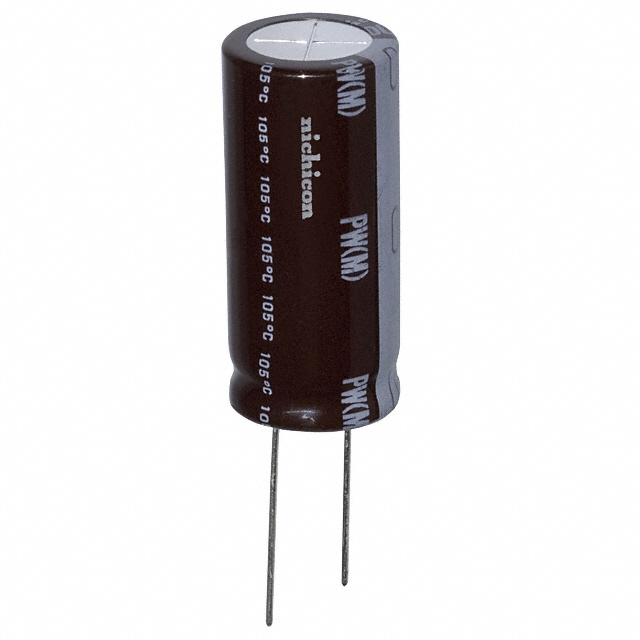

UPW2D221MHD

PW 系列径向 50 至 450VPW 铝电解电容器比 PM 系列更小的外壳尺寸和更低的阻抗 低阻抗和高可靠性，可耐受 2000 小时至 8000 小时 额定电压范围：6.3 至 450V ### 径向 105°C

PW 系列径向 50 至 450V

PW 铝电解器

比 PM 系列更小的外壳尺寸和更低的阻抗

低阻抗和高可靠性，可耐受 2000 小时至 8000 小时

额定电压范围：6.3 至 450V

立创商城:
220uF ±20% 200V

得捷:
CAP ALUM 220UF 20% 200V RADIAL

欧时:
Nichicon 铝电解电容器 PW 系列, 200V dc, 220μF, 通孔安装, UPW2D221MHD

贸泽:
Aluminum Electrolytic Capacitors - Leaded 200volts 220uF 18x40 20% 7.5LS

艾睿:
Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic UPW2D221MHD aluminum capacitor from Nichicon for its relatively high ESR! It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 1860@1Min μA. Its capacitance value is 220uF. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. This product is 40 mm tall with a diameter of 18 mm. The UPW2D221MHD aluminum electrolytic capacitor has a radial termination style.

Allied Electronics:
220uF 200 V dc Aluminium Electrolytic Capacitor; PW Series 8000h 18Dia.x40mm

安富利:
Cap Aluminum 220uF 200V 20% 18 X 40mm Radial 7.5mm 515mA 8000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 220uF 200V 20% 18 X 40mm Radial 7.5mm 515mA 8000h 105℃ Automotive Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 220uF; 200VDC; ±20%

Verical:
Cap Aluminum Lytic 220uF 200V 20% 18 X 40mm Radial 7.5mm 515mA 8000h 105C Automotive Bulk
