UVZ0J223MHD

22mF ±20% 6.3V Φ18mm 40mm

铝电解器 径向，Can - 105°C 时为 1000 小时

立创商城:
22000uF ±20% 6.3V

得捷:
CAP ALUM 22000UF 20% 6.3V RADIAL

艾睿:

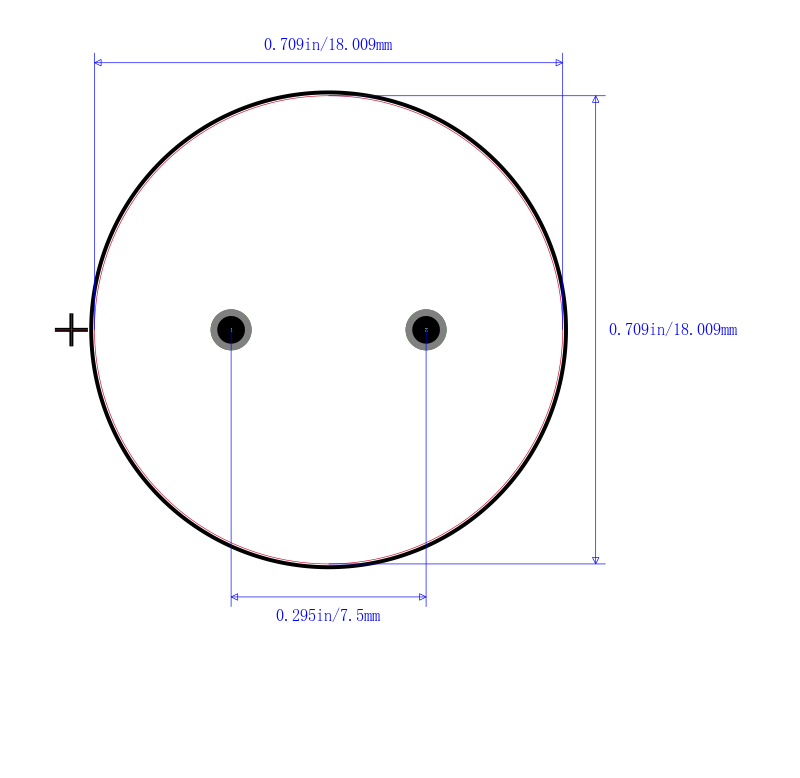

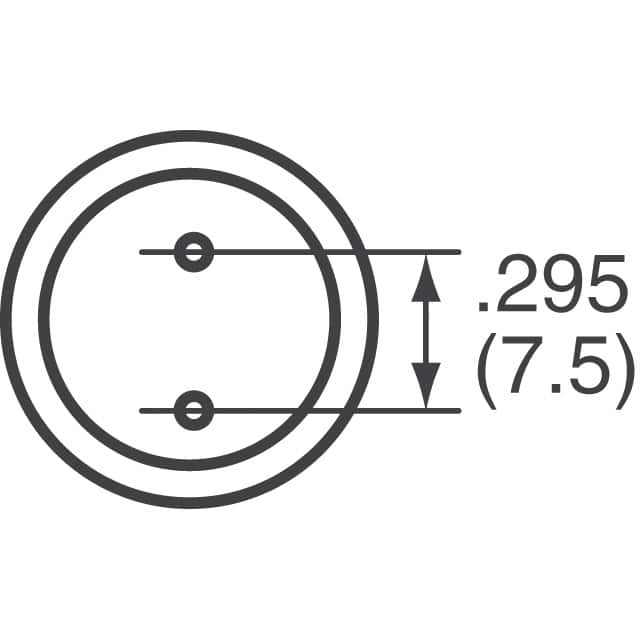

Thanks to Nichicon, you&s;ll never miss low-end frequencies with their electrolytic UVZ0J223MHD aluminum capacitor. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UVZ0J223MHD aluminum electrolytic capacitor has a radial termination style. This product is 40 mm tall with a diameter of 18 mm. It has a tolerance of 20%. Its capacitance value is 22000uF. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 4158@1Min|1386@2Min μA.

安富利:
NCHUVZ0J223MHD

Chip1Stop:
Cap Aluminum Lytic 22000uF 6.3V 20% 18 X 40mm Radial 7.5mm 2350mA 1000h 105℃ Bulk

Newark:
# NICHICON  UVZ0J223MHD  Electrolytic Capacitor, 22000 µF, 6.3 V, VZ Series, ± 20%, Radial Leaded, 18 mm
