UVY2A102MHD

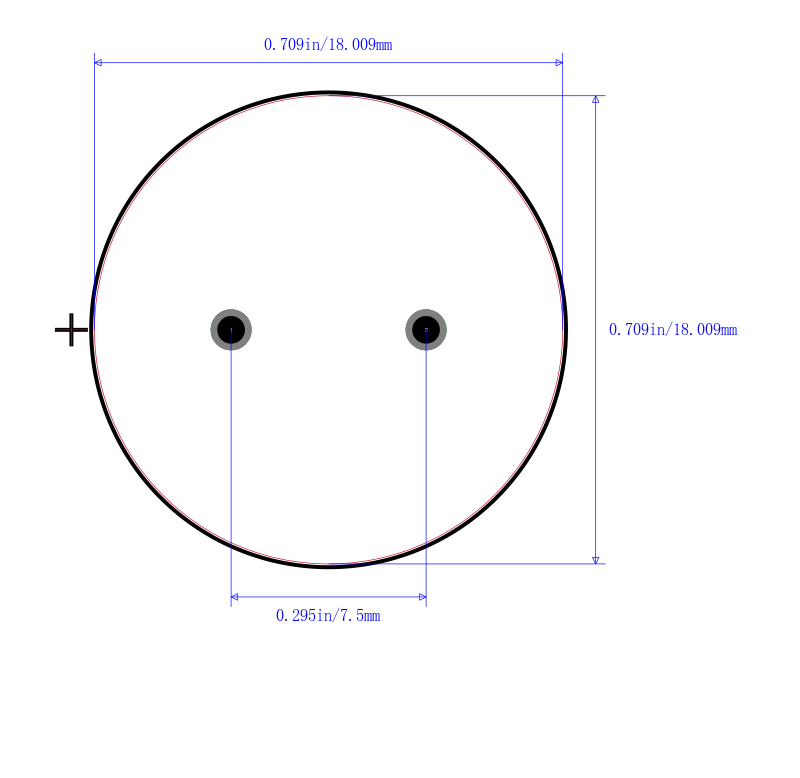

1mF ±20% 100V Φ18mm 35.5mm

**Features:

**

* One Rank Smaller Case Sizes Than VZ Series**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 68000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 1000UF 20% 100V RADIAL

立创商城:
1000uF ±20% 100V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 100volts 1000uF 20% 18X35.5 7.5LS

艾睿:
Cap Aluminum Lytic 1000uF 100V 20% 18 X 35.5mm Radial 7.5mm 960mA 1000h 105°C Bulk

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 1000uF 20% Radial 18X35.5 LS 7.5mm

Chip1Stop:
Cap Aluminum Lytic 1000uF 100V 20% 18 X 35.5mm Radial 7.5mm 960mA 1000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 1000uF; 100VDC; Ø18x35.5mm; ±20%

Verical:
Cap Aluminum Lytic 1000uF 100V 20% 18 X 35.5mm Radial 7.5mm 960mA 1000h 105C Bulk

Newark:
# NICHICON  UVY2A102MHD  Electrolytic Capacitor, 1000 µF, 100 V, VY Series, ± 20%, Radial Leaded, 18 mm
