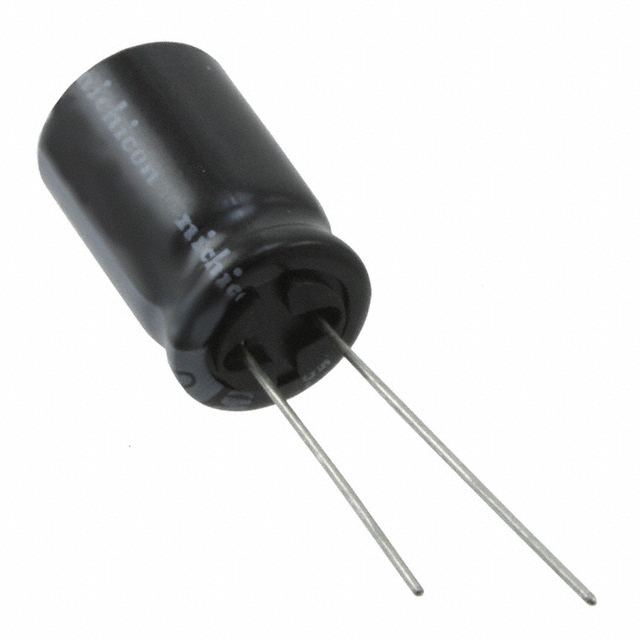

UVZ2V101MHD

100uF ±20% 350V Φ18mm 40mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

立创商城:
100uF ±20% 350V

得捷:
CAP ALUM 100UF 20% 350V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 350volts 100uF 105c 18x40 7.5LS

艾睿:

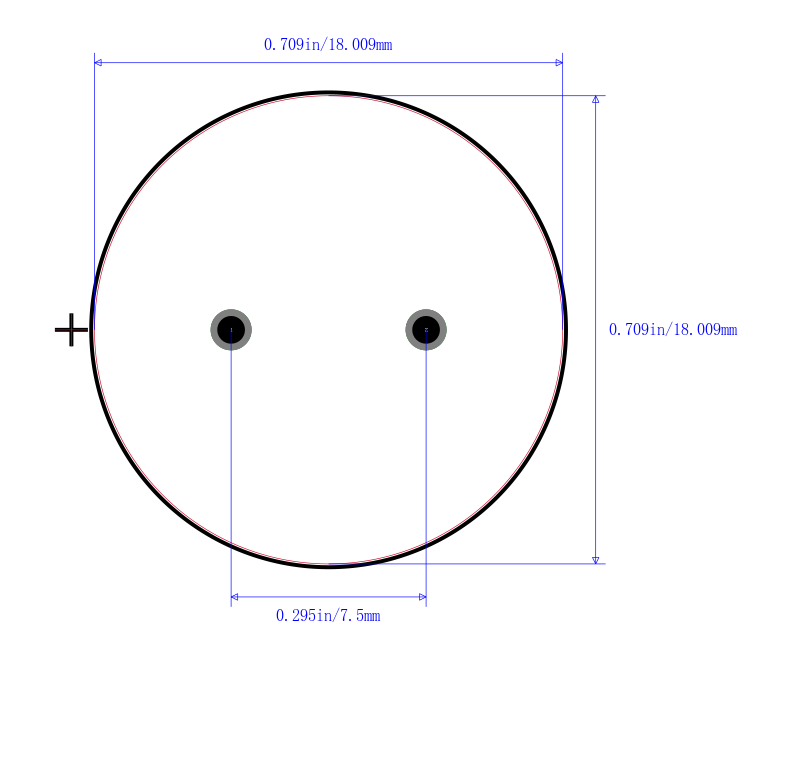

Choose this electrolytic UVZ2V101MHD aluminum capacitor from Nichicon for its relatively high ESR. It can withstand a voltage of 350 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 40 mm tall with a diameter of 18 mm. The UVZ2V101MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 1500@1Min μA. It has a tolerance of 20%. Its capacitance value is 100uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 100uF 20% Radial 18X40 LS 7.5mm

安富利:
Cap Aluminum 100uF 350V 20% 18 X 40mm Radial 7.5mm 420mA 1000h 105°C Bulk
