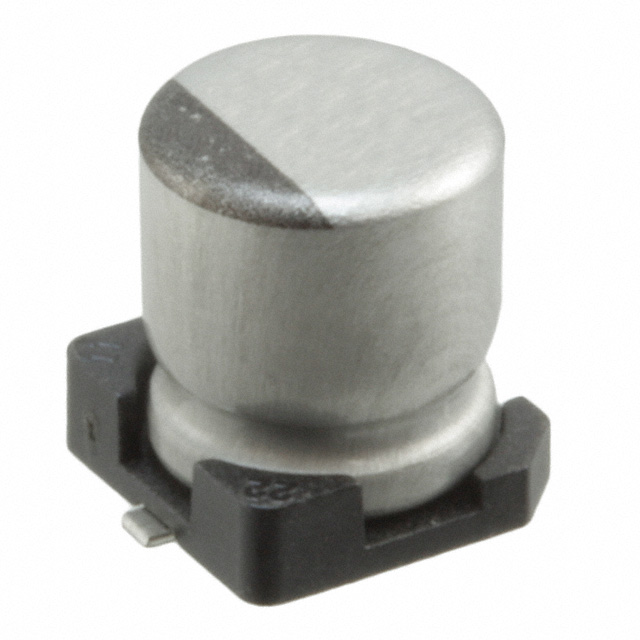

UUL0J470MCL1GS

47uF ±20% 6.3V Φ5mm 5.8mm

47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C

立创商城:
47uF ±20% 6.3V

得捷:
CAP ALUM 47UF 20% 6.3V SMD

艾睿:
Using this electrolytic UUL0J470MCL1GS aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 2.96@2Min μA. This product is 5.8 mm tall with a diameter of 5 mm. Its capacitance value is 47uF.

Chip1Stop:
Cap Aluminum Lytic 47uF 6.3V 20% 5 X 5.8mm SMD 36mA 5000h 105℃ T/R

Verical:
Cap Aluminum Lytic 47uF 6.3V 20% 5 X 5.8mm SMD 36mA 5000h 105C Automotive T/R
