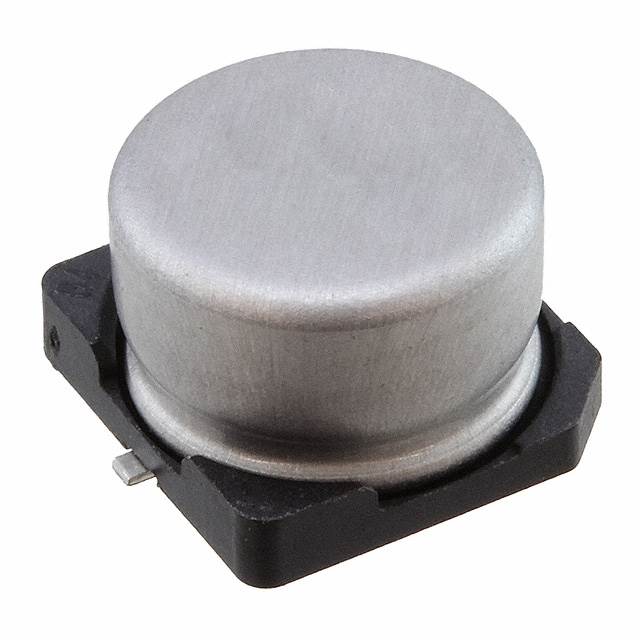

UWP1H100MCL1GB

铝电解电容器

铝电解器

立创商城:
10uF ±20% 50V

得捷:
CAP ALUM 10UF 20% 50V SMD

艾睿:
The pure aluminum anode on the electrolytic UWP1H100MCL1GB electrolytic capacitor, designed from Nichicon, is the solution to your signal filtering needs. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This product is 5.8 mm tall with a diameter of 6.3 mm. Its capacitance value is 10uF. Its leakage current is 5@2Min μA.

Chip1Stop:
Cap Aluminum Lytic 10uF 50V 20% 8 X 5.4mm SMD 165mA 2000h 85℃ T/R

Verical:
Cap Aluminum Lytic 10uF 50V 20% 8 X 5.4mm SMD 165mA 2000h 85C T/R

Newark:
# NICHICON  UWP1H100MCL1GB  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 10 µF, 50 V, WP Series
