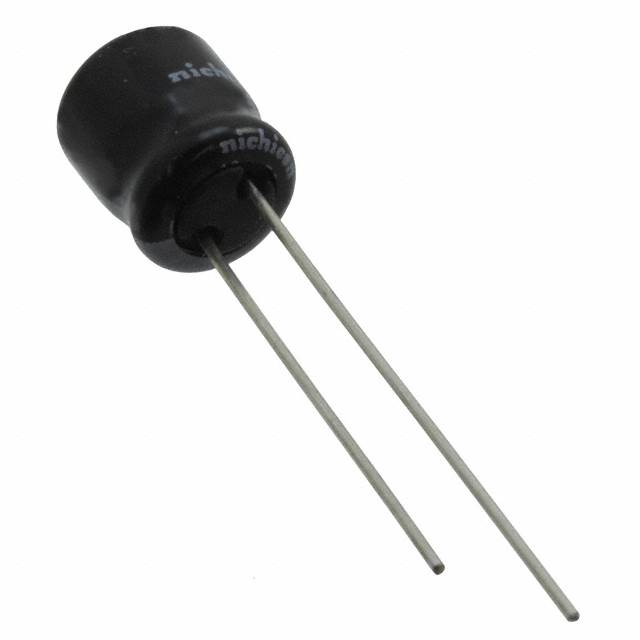

UST1H100MDD1TP

ST 系列 10 uF 50 V 20 % 通孔 径向 铝电解电容

10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C

得捷:
CAP ALUM 10UF 20% 50V RADIAL

立创商城:
10uF ±20% 50V

艾睿:
By implementing this electrolytic UST1H100MDD1TP aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UST1H100MDD1TP aluminum electrolytic capacitor has a radial termination style. This product is 7 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%. Its leakage current is 5@2Min μA. This part has a lead diameter of 0.45 mm and a pitch of 2.5 mm. Its capacitance value is 10uF.
