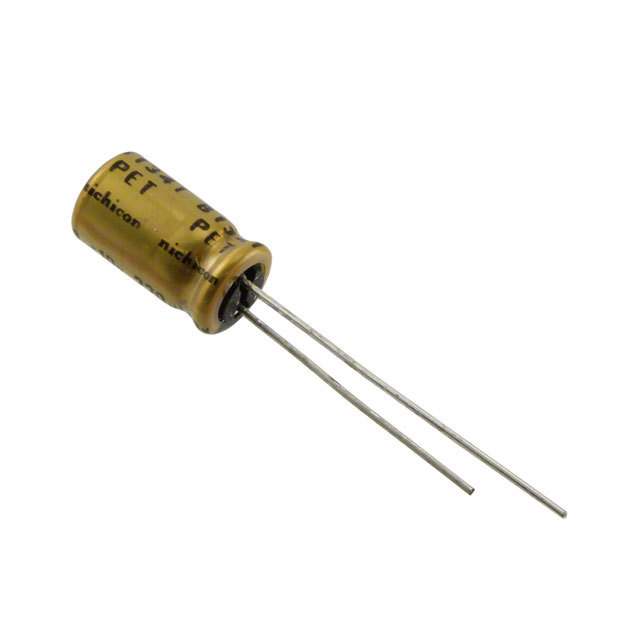

10uF ±20% 100V Φ6.3mm 11mm
Manufactured from , this electrolytic aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The UFW2A100MED aluminum electrolytic capacitor has a radial termination style. This product is 11 mm tall with a diameter of 6.3 mm. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its leakage current is 4@1Min|3@2Min μA. It has a tolerance of 20%. Its capacitance value is 10uF.
额定电压DC 100 V
工作电压 100 VDC
电容 10 µF
容差 ±20 %
产品系列 UFW
纹波电流 75mA @120Hz
纹波电流高频 75mA @120Hz
纹波电流低频 150mA @10kHz
额定电压 100 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 2.5 mm
高度 11 mm
直径 6.30 mm
封装 Radial, CAN
引脚间距 2.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
最小包装 4000
寿命（小时） 2000 h
制造应用 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UFW2A100MED Nichicon 尼吉康 | 当前型号 | 当前型号 |
UFW2A100MED1TD 尼吉康 | 完全替代 | UFW2A100MED和UFW2A100MED1TD的区别 |
UFW2A100MED1TA 尼吉康 | 类似代替 | UFW2A100MED和UFW2A100MED1TA的区别 |
UKW2A100MED 尼吉康 | 类似代替 | UFW2A100MED和UKW2A100MED的区别 |
