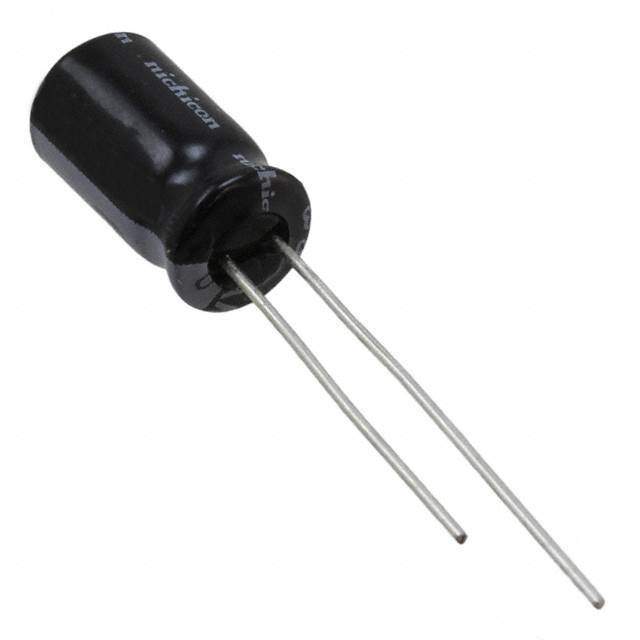

UVY2GR47MED

470nF ±20% 400V Φ6.3mm 11mm

铝电解器 径向，Can - 105°C 时为 1000 小时

得捷:
CAP ALUM 0.47UF 20% 400V RADIAL

立创商城:
470nF ±20% 400V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 400volts 0.47uF 6.3x11 20% 2.5LS

艾睿:
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UVY2GR47MED electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UVY2GR47MED aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 0.47uF. It has a tolerance of 20%. Its leakage current is 58.8@1Min μA. This product is 11 mm tall with a diameter of 6.3 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 0.47uF 20% Radial 6.3X11 LS 2.5mm

Chip1Stop:
Cap Aluminum Lytic 0.47uF 400V 20% 6.3 X 11mm Radial 2.5mm 8.5mA 1000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 0.47uF; 400VDC; Ø6.3x11mm; ±20%

Verical:
Cap Aluminum Lytic 0.47uF 400V 20% 6.3 X 11mm Radial 2.5mm 8.5mA 1000h 105C Bulk
