UFW2A220MED

22uF ±20% 100V Φ6.3mm 11mm

22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 22UF 20% 100V RADIAL

立创商城:
22uF ±20% 100V

艾睿:
This electrolytic UFW2A220MED aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The UFW2A220MED aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 22uF. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its leakage current is 4@1Min|3@2Min μA. This product is 11 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%.

TME:

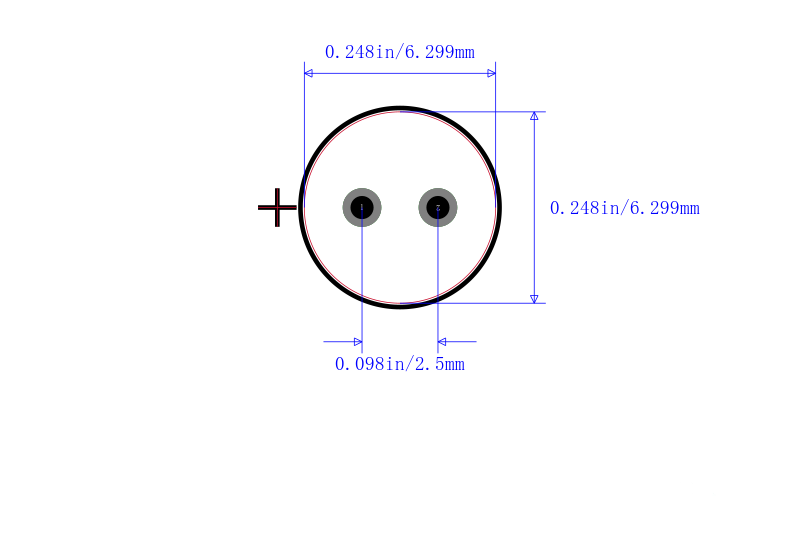

Capacitor: electrolytic; THT; 22uF; 100VDC; Ø6.3x11mm; Pitch:2.5mm

Verical:
Cap Aluminum Lytic 22uF 100V 20% 6.3 X 11mm Radial 2.5mm 120mA 2000h 85C Bulk
