UPS2E010MED

1uF ±20% 250V Φ6.3mm 11mm

1 µF 250 V 铝电解器 径向，Can - 105°C 时为 2000 小时

立创商城:
1uF ±20% 250V

得捷:
CAP ALUM 1UF 20% 250V RADIAL

艾睿:

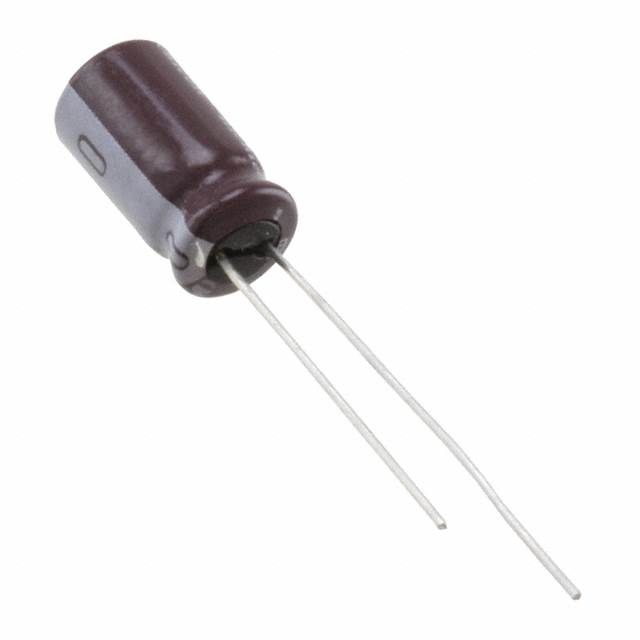

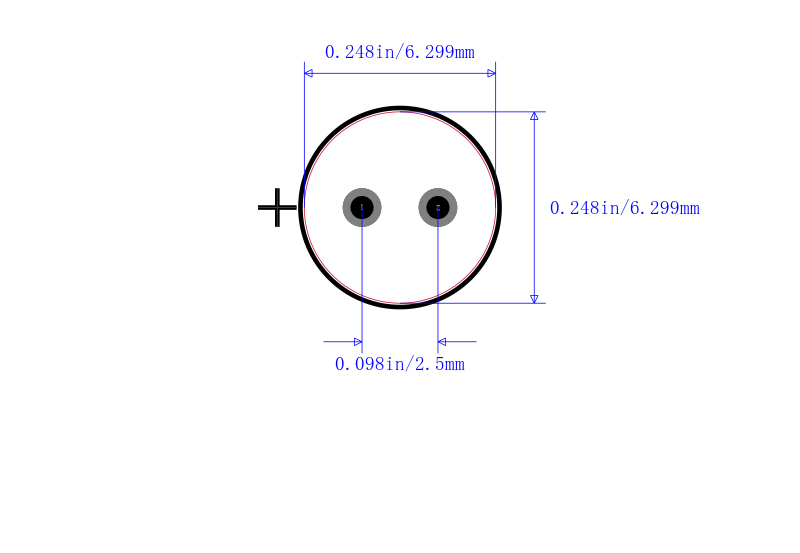

If you need to filter lower signal frequencies, then this electrolytic UPS2E010MED aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 11 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 1uF. The UPS2E010MED aluminum electrolytic capacitor has a radial termination style.

TME:
Capacitor: electrolytic; low impedance; THT; 1uF; 250VDC; ±20%
