CD 系列低阻抗### 表面安装 105°C 系列
CD 系列低阻抗
得捷:
CAP ALUM 27UF 20% 25V SMD
立创商城:
27uF ±20% 25V
欧时:

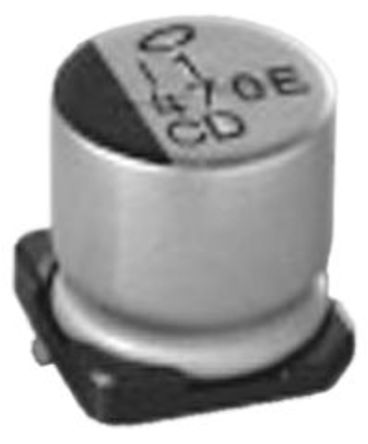

Nichicon 铝电解电容器 CD 系列 25V dc 27μF 表面安装器件 UCD1E270MCL1GS, ±20%容差, 最高+105°C
艾睿:
By implementing this electrolytic UCD1E270MCL1GS aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 27uF. Its leakage current is 6.75@2Min μA. This product is 5.8 mm tall with a diameter of 6.3 mm.
Allied Electronics:
27uF 25 V dc Aluminium Electrolytic Capacitor; CD Series 2000h 6.3Dia.x5.8mm
安富利:
Cap Aluminum 27uF 25V 20% 6.3 X 5.8mm SMD 240mA 2000 hr 105°C T/R
TME:
Capacitor: electrolytic; low impedance; SMD; 27uF; 25VDC; ±20%
额定电压DC 25.0 V
工作电压 25 VDC
电容 27 µF
等效串联电阻ESR 0.36 Ω
容差 ±20 %
产品系列 UCD
纹波电流 240 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装 SMD
高度 5.8 mm
直径 6.30 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命(小时) 2000 h
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
