USP1E100MDD

10uF ±20% 25V Φ6.3mm 7mm

10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

立创商城:
10uF ±20% 25V

得捷:
CAP ALUM 10UF 20% 25V RADIAL

艾睿:

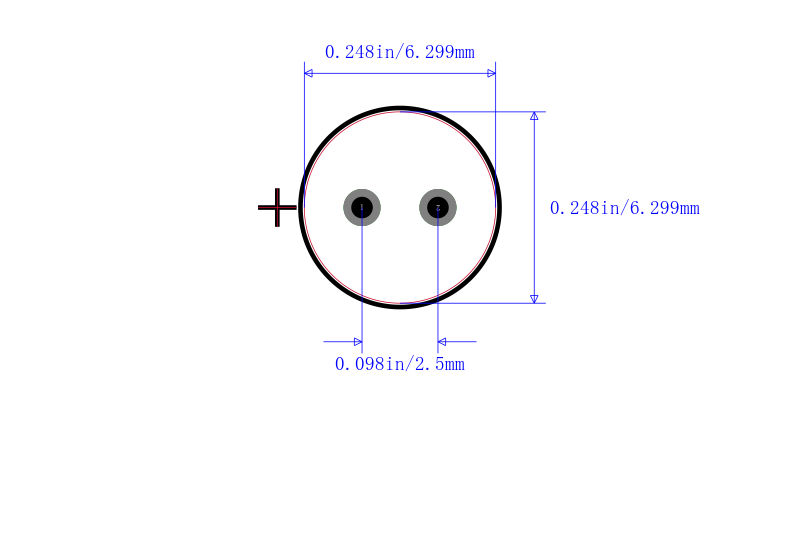

Lower the cost of your electronic circuit design by implementing this electrolytic USP1E100MDD aluminum capacitor from Nichicon. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 7 mm tall with a diameter of 6.3 mm. This part has a lead diameter of 0.45 mm and a pitch of 2.5 mm. Its leakage current is 12.5@2Min μA. It has a tolerance of 20%. The USP1E100MDD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 10uF.

安富利:
Cap Aluminum 10uF 25V 20% 6.3 X 7mm Radial 2.5mm 35mA 2000h 85°C Bulk

Newark:
# NICHICON  USP1E100MDD  Electrolytic Capacitor, Bi-Polarized, 10 µF, 25 V, SP Series, ± 20%, Radial Leaded, 6.3 mm
