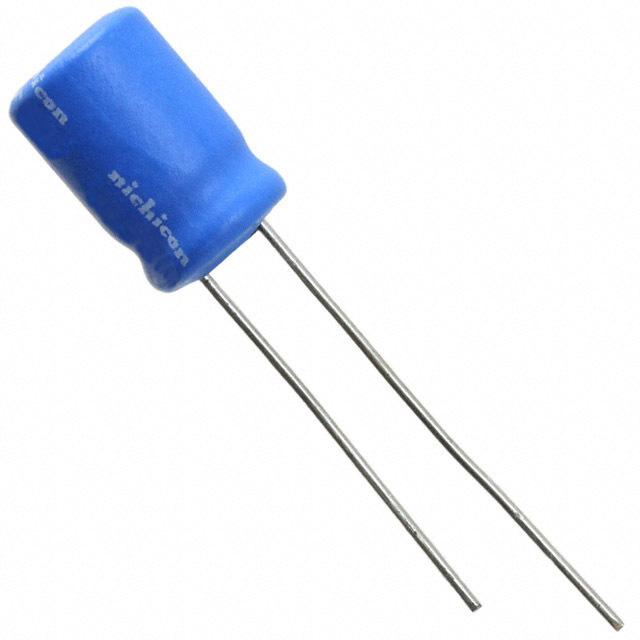

UBT1H4R7MPD

4.7uF ±20% 50V 85mA100kHz85mA Φ8mm

4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 125°C

得捷:
CAP ALUM 4.7UF 20% 50V RADIAL

艾睿:

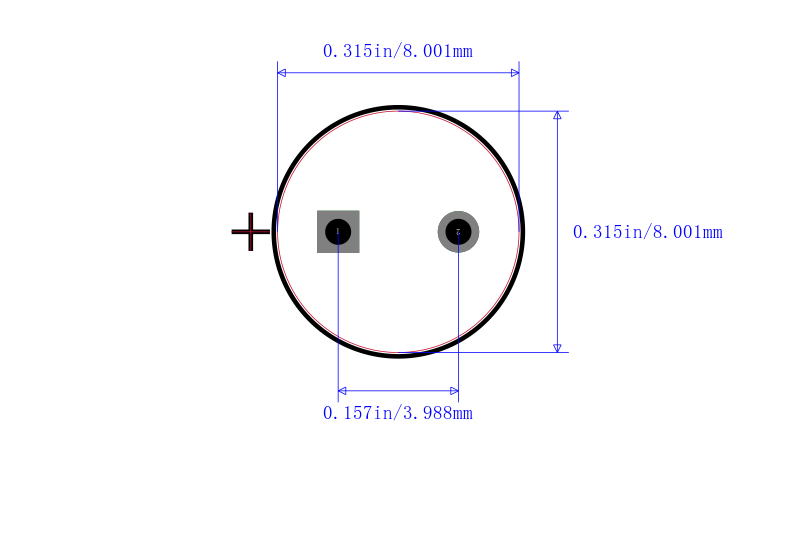

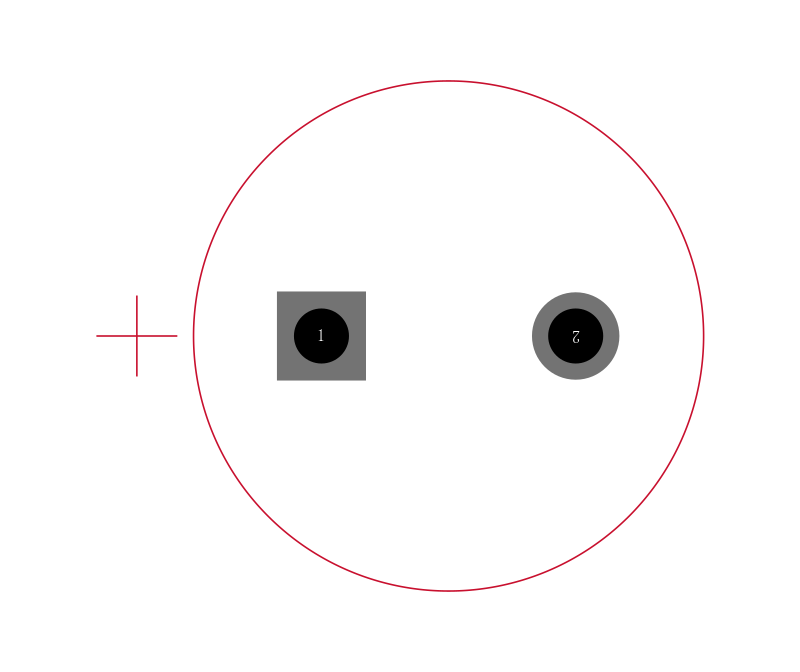

Thanks to Nichicon, you&s;ll never miss low-end frequencies with their electrolytic UBT1H4R7MPD aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. The UBT1H4R7MPD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 4@1Min μA. Its capacitance value is 4.7uF. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 11.5 mm tall with a diameter of 8 mm.
