680uF ±20% 10V 795mA100kHz795mA Φ8mm

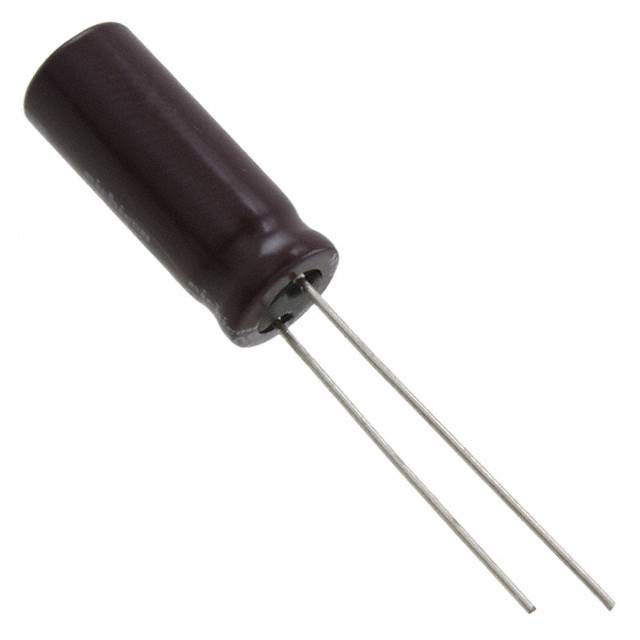

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic electrolytic capacitor from is for you. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. The UPM1A681MPD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 204@1Min μA. Its capacitance value is 680uF. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 8 mm.
额定电压DC 10 V
电容 680 µF
等效串联电阻ESR 0.085 Ω
容差 ±20 %
产品系列 UPM
纹波电流 660 mA
纹波电流高频 660mA @120Hz
纹波电流低频 795mA @10kHz
工作温度Max 105 ℃
工作温度Min 55 ℃
额定电压 10 V
安装方式 Through Hole
引脚数 2

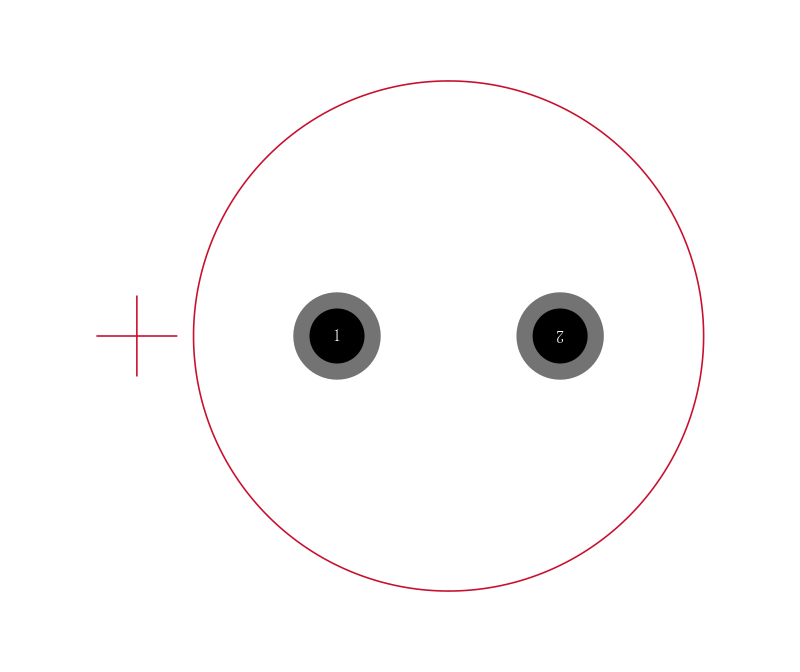

封装 Radial, CAN

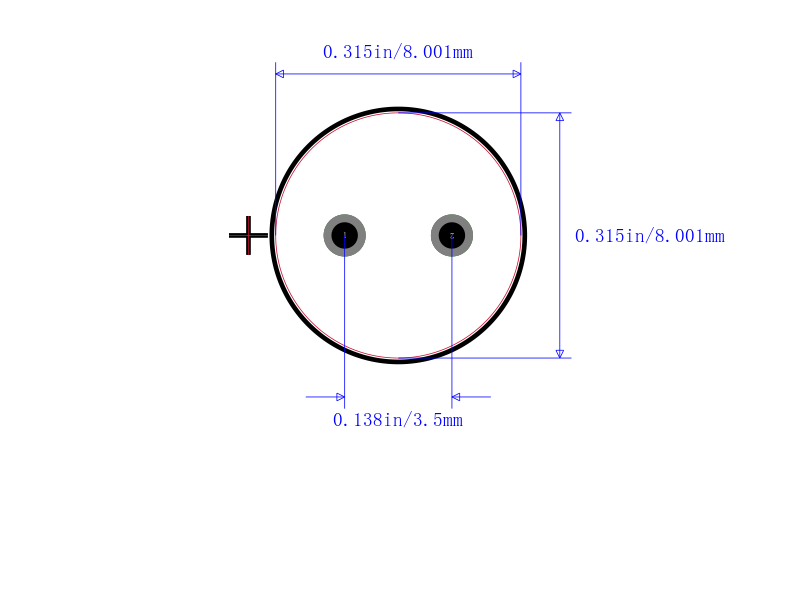

引脚间距 3.5 mm
长度 20 mm
高度 20 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 2000
寿命（小时） 3000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UPM1A681MPD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UPJ1A681MPD1TA 尼吉康 | 完全替代 | UPM1A681MPD和UPJ1A681MPD1TA的区别 |
UPJ1A681MPD 尼吉康 | 类似代替 | UPM1A681MPD和UPJ1A681MPD的区别 |
UPJ1A681MPD1TD 尼吉康 | 类似代替 | UPM1A681MPD和UPJ1A681MPD1TD的区别 |
