47uF ±20% 50V Φ8mm 11.5mm
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic electrolytic capacitor from is for you. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 3@1Min μA. The UFG1H470MPM aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 47uF. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 11.5 mm tall with a diameter of 8 mm. It has a tolerance of 20%.
额定电压DC 50 V
工作电压 50 VDC
电容 47 µF
容差 ±20 %
产品系列 UFG
纹波电流 111 mA
纹波电流高频 111mA @120Hz
纹波电流低频 222mA @10kHz
工作温度Max 85 ℃
工作温度Min 40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2

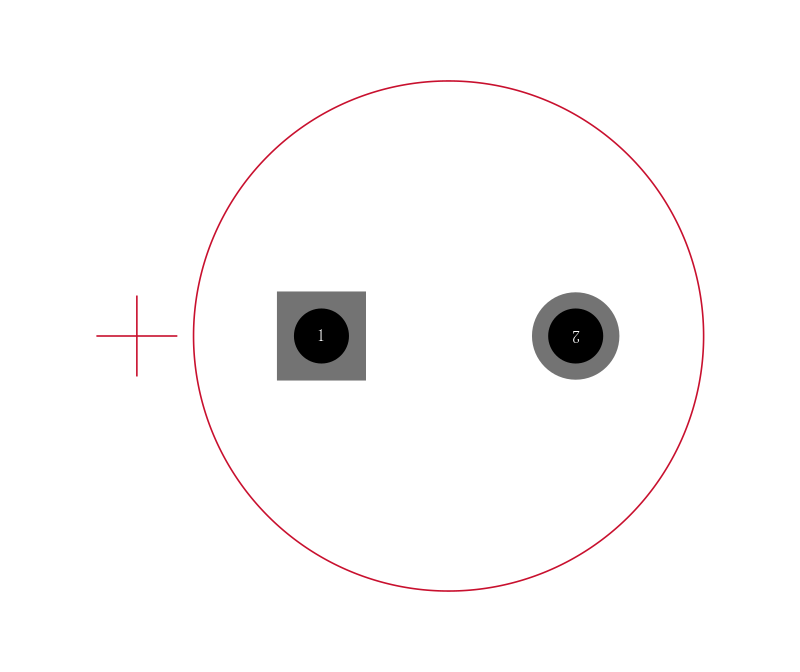

封装 Radial, CAN

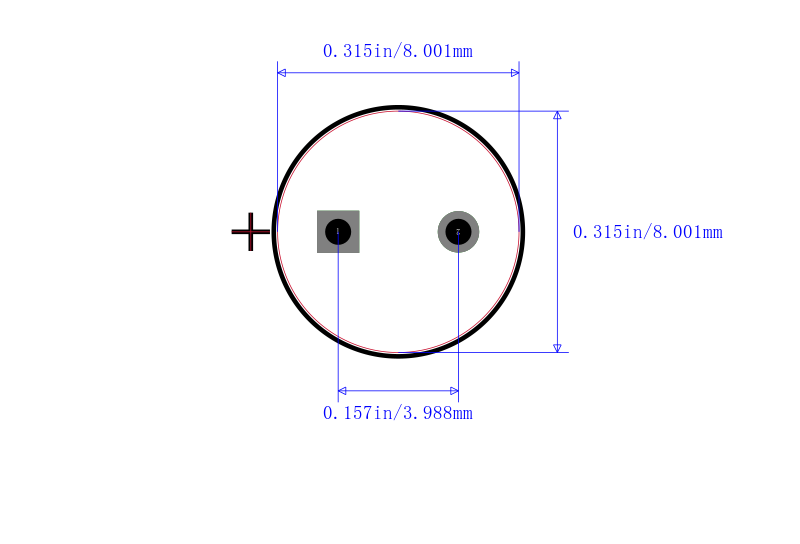

引脚间距 3.5 mm
长度 11.5 mm
高度 11.5 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
最小包装 3000
寿命（小时） 1000 h
制造应用 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UFG1H470MPM Nichicon 尼吉康 | 当前型号 | 当前型号 |
UFG1V470MPM 尼吉康 | 功能相似 | UFG1H470MPM和UFG1V470MPM的区别 |
